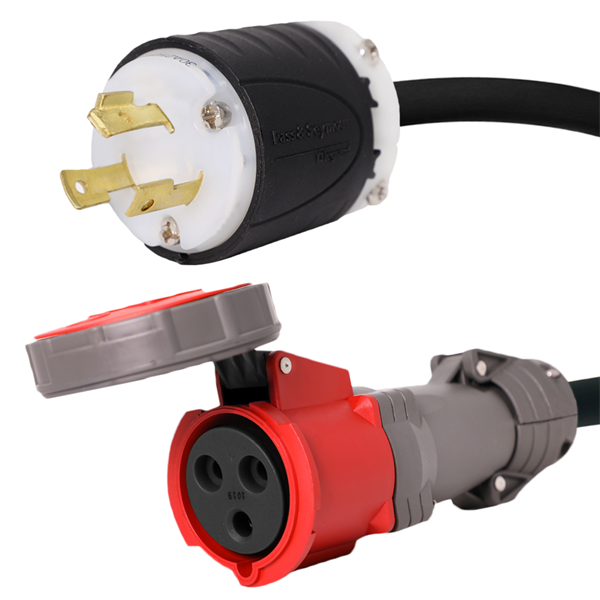

NEMA L8-30P to 330C7W Pin and Sleeve Connector
Our plug adapters simplify compatibility between devices that use different plug and connector configurations. This adapter converts from a L8-30P to a 330C7W for a secure, reliable fit. Rated 30A, these adapters are designed to handle demanding power applications safely. Constructed with 10/3 wire and a durable SJOOW jacket for flexibility, abrasion resistance, and long-term performance.
NEMA L8-30P to 330C7W Pin and Sleeve Connector is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Shipping & Delivery
Shipping & Delivery
Returns & Refunds
Returns & Refunds
Support
Support
-
Plug TypeL8-30P
-
Amperage30A
-
Voltage
-
Wire Gauge

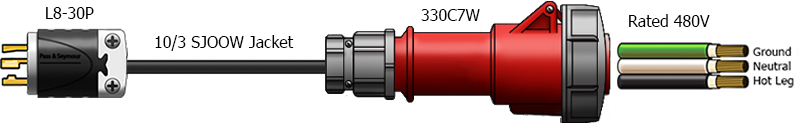

NEMA L8-30P to IEC 60309 Pin and Sleeve 330C7W Power Cord Plug Adapter

Specifications:
| Male Plug |
NEMA L8-30P |
| Female Connector | IEC 60309 330C7W (Pin and Sleeve) |
| Amperage | 30 Amps |
| Voltage | 480V |
| Length | 1 Foot |
| Conductors | 3 wire |
| Wire Gauge | 10/3 |
| Jacket | SJOOW |
Technical Notes: Uses 10/3 SJOOW premium grade water/oil resistant jacket - Ground is in the 7 O'Clock position
Applications: Convert a pin and sleeve 330C7W plug to a NEMA L8-30P twist lock plug
For use in areas of high moisture, generators, data centers, watertight marine applications
AKA: 330C7W Pin and Sleeve Adapter, 30A pin and sleeve power cable, 330C7W to L8-30P
Custom built to order
Part Number: IBX-2416
