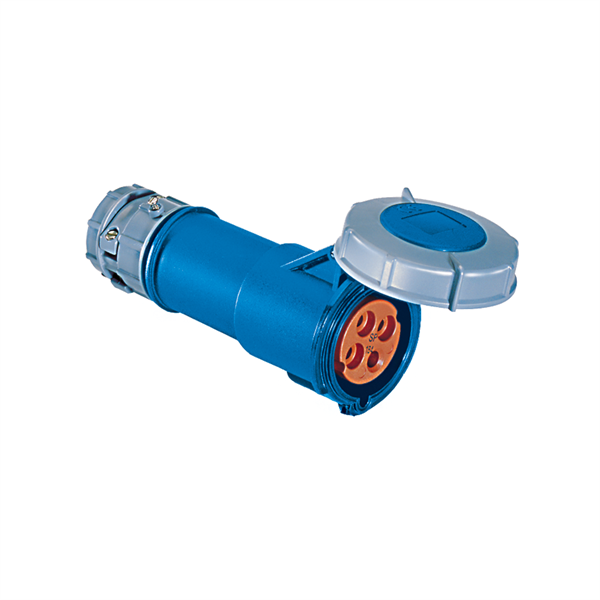

Mennekes ME520C9W 20A, 120/208V 4-Pole Connector
Mennekes ME520C9W 20A, 120/208V 4-Pole Connector is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Shipping & Delivery
Shipping & Delivery
Returns & Refunds
Returns & Refunds
Support
Support
Mennekes 520C9W Connector, 20A, 220V - 250V, IEC 60309

Specifications:
| Connector Type | 520C9W (IEC 60309) |
| Amperage | 20 Amps |
| Voltage | 220V, 230V, 240V, 250V |
| Manufacturer Part # | ME520C9W |
| # of Poles / Wires | 4-Pole, 5 Wire |
| Wire AWG Compatibility | 10 AWG to 14 AWG |
| IP Rating | IP67 |
| Phase |
Single Phase |
| Color | Blue |
| Certifications | UL Listed |
Applications: Attaches to the end of an electrical cord and plugs into a compatible 520P9W connector or 520B9W receptacle
Part # Explanation: 520C9W - 5 = # of Wires, 20 = Amps, C = Connector, 9 = Clock Postion of Ground, W = Watertight
