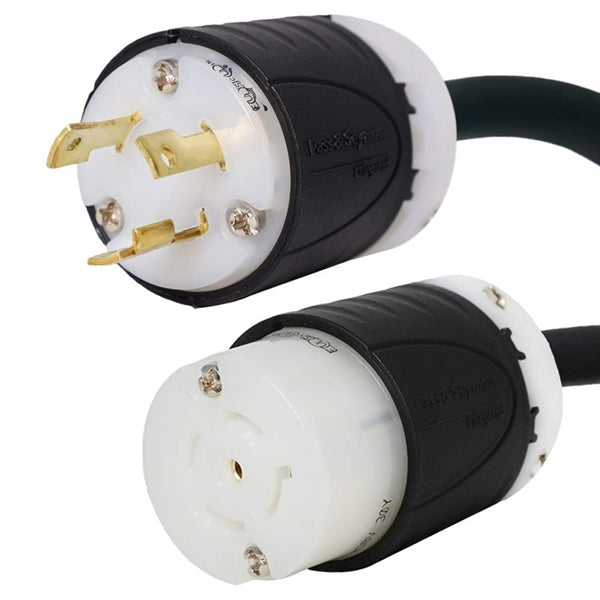

L6-30P to L21-30R Plug Adapter [1 Foot]
Our plug adapters simplify compatibility between devices that use different plug and connector configurations. This adapter converts from a L6-30P to a L21-30R for a secure, reliable fit. Rated 30A, these adapters are designed to handle demanding power applications safely. Constructed with 10/3 wire and a durable SOOW jacket for flexibility, abrasion resistance, and long-term performance.
L6-30P to L21-30R Plug Adapter [1 Foot] - 1 Foot is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Shipping & Delivery
Shipping & Delivery
Returns & Refunds
Returns & Refunds
Support
Support
-
Plug TypeL6-30P
-
Amperage30A
-
Voltage
-
Wire Gauge
NEMA L6-30P to L21-30R Power Cord Plug Adapter, 30A, 208V

Specifications:
| Plug Type | L6-30P |
| Connector Type | L21-30R |
| Length | 1, 3, 6, 10, 20, 40, 100 Foot (Custom Lengths Available) |
| Amperage | 30 Amps |
| Voltage | 208V |
| Number of Conductors | 3 |
| Wire Gauge | 10 AWG |
| Jacket Type | SOOW |
| Temperature Rating | 105º C |
| Color | Black |
| Testing | Tested for Voltage Hi-Potential, Continuity, and Polarity |
Technical Notes: Make sure your device doesn't need more amps than the outlet allows Applications: Convert a NEMA locking L21-30P plug to fit into a L6-30R locking socket Custom built to order
Also Known As: L21-30 Adapter, L21-30P to L6-30R Pigtail, L6-30 to L21-30 Adapter, L6-30P to L21-30R
Part Number: IBX-7795-XX
