Iron Box | SKU:
IBX-3223-01

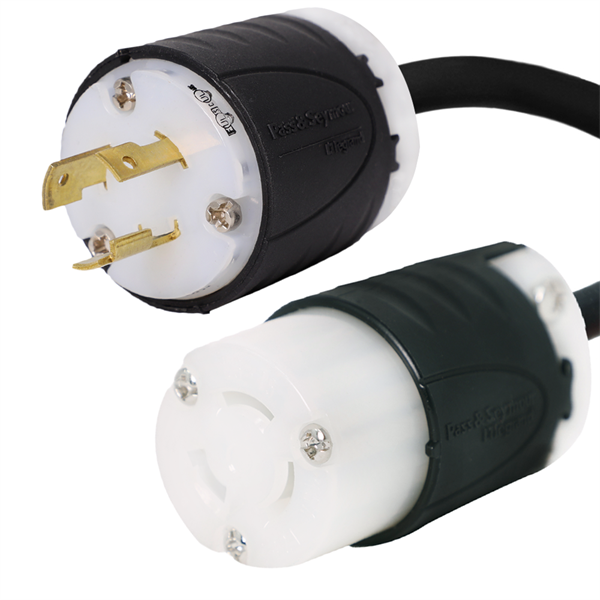

L6-20P to L6-15R Plug Adapter [1 Foot]
$24.99
Unit price
/
Unavailable
Shipping calculated at checkout.
Our plug adapters simplify compatibility between devices that use different plug and connector configurations. This adapter converts from a L6-20P to a L6-15R for a secure, reliable fit. Rated 15A, these adapters are designed to handle demanding power applications safely. Constructed with 14/3 wire and a durable SJT jacket for flexibility, abrasion resistance, and long-term performance.
L6-20P to L6-15R Plug Adapter [1 Foot] is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Request for Tax Exemptions
Shipping & Delivery
Shipping & Delivery
Returns & Refunds
Returns & Refunds
Support
Support
-
Plug TypeL6-20P
-
Amperage15A
-
Voltage
-
Wire Gauge
NEMA L6-20P to L6-15R Power Cord Plug Adapter, 1 Foot, 15A, 250V
Specifications:
Technical Notes: Make sure your device doesn't need more amps than the outlet allows
Applications: Convert a NEMA locking L6-15 plug to a NEMA L6-20 Locking connector
Also Known As: L6-20P Adapter, L6-20P to L6-15R Pigtail, L6-15 to L6-20 Adapter
Custom built to order
Part Number: IBX-3223 (X = Length)
Fax Purchase Orders to 1-800-447-1381 or email sales@lockingpowercords.com Call Toll-Free 1-800-590-8610 if you need technical assistance or if you need a quote
Specifications:
| Plug Type | L6-20P |
| Connector Type | L6-15R |
| Length | 1 Foot (Custom Lengths Available) |
| Amperage | 15 Amps |
| Voltage | 250V |
| Number of Conductors | 3 |
| Wire Gauge | 14 AWG |
| Jacket Type | SJT |
| Temperature Rating | 105º C |
| Color | Black |
| Testing | Tested for Voltage Hi-Potential, Continuity, and Polarity |
Part Number: IBX-3223 (X = Length)
Fax Purchase Orders to 1-800-447-1381 or email sales@lockingpowercords.com Call Toll-Free 1-800-590-8610 if you need technical assistance or if you need a quote
