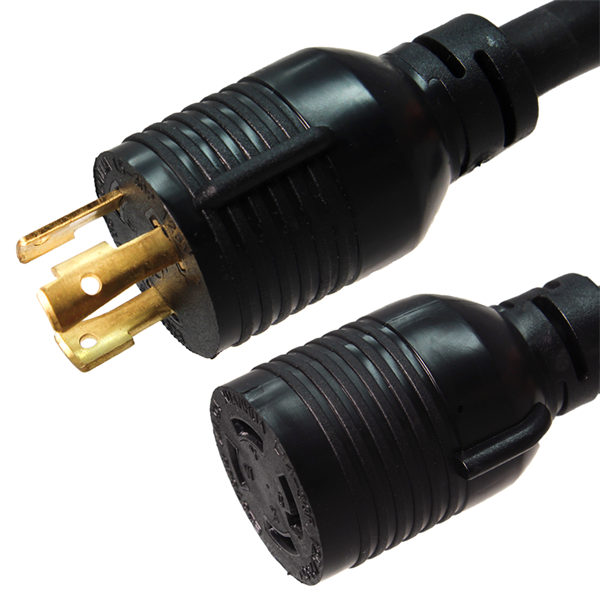

L5-30P to L14-30R Plug Adapter [1 Foot]
Our plug adapters simplify compatibility between devices that use different plug and connector configurations. This adapter converts from a L5-30P to a L14-30R for a secure, reliable fit. Rated 30A at 125/250V, these adapters are designed to handle demanding power applications safely. Constructed with 10/3 wire and a durable SJOOW jacket for flexibility, abrasion resistance, and long-term performance.
L5-30P to L14-30R Plug Adapter [1 Foot] is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Shipping & Delivery
Shipping & Delivery
Returns & Refunds
Returns & Refunds
Support
Support
-
Plug TypeL5-30P
-
Amperage30A
-
Voltage
-
Wire Gauge
-
Jacket Type
-
Tempertature Rating

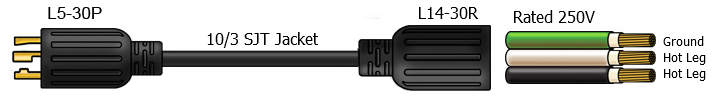

NEMA L5-30P to L14-30R Power Cord Plug Adapter, 1 Foot, 30A, 125V
Specifications:
| Plug Type | L5-30P |
| Connector Type | L14-30R |
| Length | 1 Foot (Custom Lengths Available) |
| Amperage | 30 Amps |
| Voltage | 125V |
| Number of Conductors | 3 |
| Wire Gauge | 10 AWG |
| Jacket Type | SJT |
| Temperature Rating |
105º C |
| Color | Black |
| Testing | Tested for Voltage Hi-Potential, Continuity, and Polarity |
Technical Notes: Make sure your device doesn't need more amps than the outlet allows
Applications: Convert a NEMA locking L14-30P plug to fit into a L5-30R locking socket
Also Known As: L14-30P Adapter, L14-30P to L5-30R Pigtail, L5-30 to L14-30 Adapter, L5-30P to L14-30R
Part Number: IBX-3537
