Iron Box | SKU:
IBX-3549-01

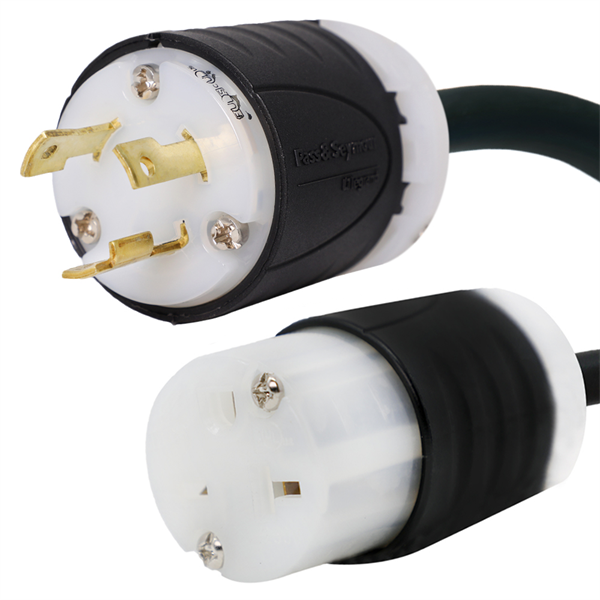

L5-30P to 6-20R Plug Adapter [1 Foot]
$70.40
Unit price
/
Unavailable
Shipping calculated at checkout.
Our plug adapters simplify compatibility between devices that use different plug and connector configurations. This adapter converts from a L5-30P to a 6-20R for a secure, reliable fit. Rated 125V, these adapters are designed to handle demanding power applications safely. Constructed with 12/3 wire and a durable SJT jacket for flexibility, abrasion resistance, and long-term performance.
L5-30P to 6-20R Plug Adapter [1 Foot] is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Request for Tax Exemptions
Shipping & Delivery
Shipping & Delivery
Returns & Refunds
Returns & Refunds
Support
Support
-
Plug TypeL5-30P
-
Voltage
-
Wire Gauge
-
Jacket Type
-
Tempertature Rating
NEMA L5-30P to 6-20R Power Cord Plug Adapter, 1 Foot, 20A, 125V
Specifications:
| Plug Type | L5-30P |
| Connector Type | 6-20R |
| Length | 1 Foot (Custom Lengths Available) |
| Amperage | 20 Amps |
| Voltage | 125V |
| Number of Conductors | 3 |
| Wire Gauge | 12 AWG |
| Jacket Type | SJT |
| Temperature Rating | 105º C |
| Color | Black |
| Testing | Tested for Voltage Hi-Potential, Continuity, and Polarity |
Also Known As: 6-20P Adapter, 6-20P to L5-30R Pigtail, L5-30 to 6-20 Adapter, L5-30P to 6-20R
Part Number: IBX-3549
Fax Purchase Orders to 1-800-447-1381 or email sales@lockingpowercords.com Call Toll-Free 1-800-590-8610 if you need technical assistance or if you need a quote
