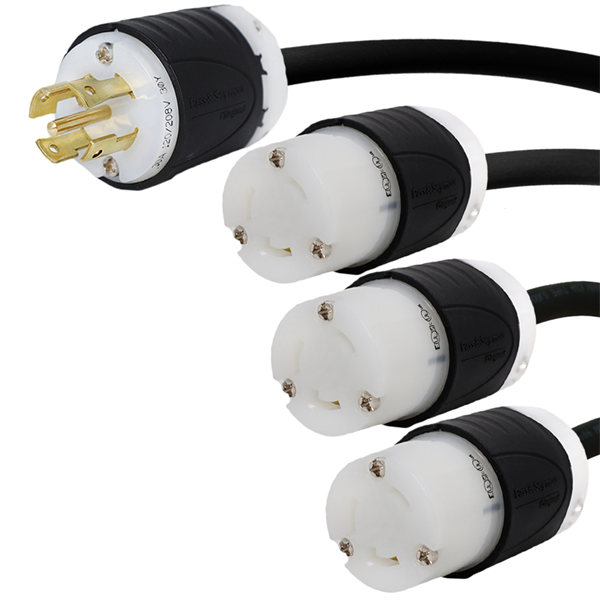

L21-30P to 3x L6-30R Splitter Power Cords
Our locking splitter cords let you power multiple devices from a single source while maintaining secure, twist-lock connections. This splitter features a L21-30P input and L6-30R x3 output(s) to prevent accidental disconnects under vibration and load. tested up to 105º C, these splitters deliver safe, consistent power in marine, RV, and industrial environments. Constructed with 12/3 conductors and a durable SJOOW jacket, they offer flexibility and resistance to abrasion, oil, and moisture.
L21-30P to 3x L6-30R Splitter Power Cords is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Shipping & Delivery
Shipping & Delivery
Returns & Refunds
Returns & Refunds
Support
Support
-
Connector TypeL6-30R x3
-
Amperage
-
Voltage
-
Wire Gauge
-
Temperature Rating105º C
-
Length10 Foot (8 Foot + 2 Foot Legs)
L21-30P to 3x L6-30R Y Splitter Power Cord, 10 Foot, Rated for 20 Amps, 250V

Specifications:
| Plug Type | L21-30P |
| Connector | L6-30R X 3 |
| Length | 10 Foot |
| Amps | 20A |
| Voltage | 208V |
| Number of Wires | 3 |
| Wire AWG | 12 AWG |
| Jacket Type | SJOOW |
| Temperature Rating |
105º C |
| Color | Black |
| Testing | Tested for Voltage Hi-Potential, Continuity, and Polarity |
Technical Notes: Heavy-Duty industrial grade SJOOW jacket
*12 AWG wire is the maximum x 3 that can be terminated into an L21-30P plug
* Each leg can be set to a custom length: IE: Phase A: 3 Foot, Phase B: 6 Foot, Phase C: 10 Foot
Applications: Allows you to run three single phase devices from a 3-Phase L21-30R Receptacle
Also Known As: L21-30 to L6-30R 3-way Splitter Cord, L21-30P to L6-30, L21-30 Splitter Cable
Part Number: IBX-2115-XX (XX = Length)
