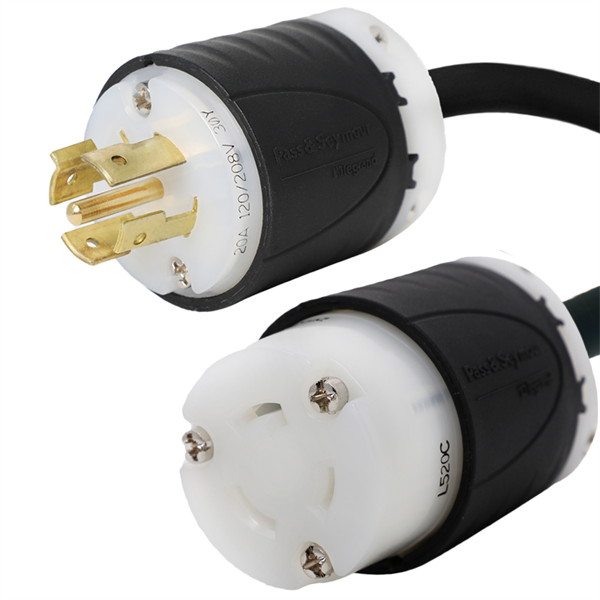

L21-20P to L5-20R Plug Adapter [1 Foot]
Our plug adapters simplify compatibility between devices that use different plug and connector configurations. This adapter converts from a L21-20P to a L5-20R for a secure, reliable fit. these adapters are designed to handle demanding power applications safely. Constructed with 12/3 wire and a durable SJOOW jacket for flexibility, abrasion resistance, and long-term performance.
L21-20P to L5-20R Plug Adapter [1 Foot] is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Shipping & Delivery
Shipping & Delivery
Returns & Refunds
Returns & Refunds
Support
Support
-
Plug TypeL21-20P
-
Wire Gauge

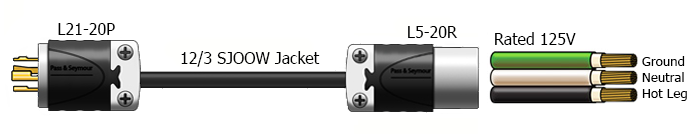

NEMA L21-20P to L5-20R Power Cord Plug Adapter, 1 Foot, 20A, 125V

Specifications:
| Plug Type | L21-20P |
| Connector Type | L5-20R |
| Length | 1 Foot (Custom Lengths Available) |
| Amperage | 20 Amps |
| Voltage | 125V |
| Number of Conductors | 3 |
| Wire Gauge | 12 AWG |
| Jacket Type | SJOOW |
| Temperature Rating |
105º C |
| Color | Black |
| Testing | Tested for Voltage Hi-Potential, Continuity, and Polarity |
Technical Notes: Make sure your device doesn't need more amps than the outlet allows
Applications: Convert a NEMA locking L5-20 plug to a NEMA Locking L21-20 connector
Also Known As: L5-20P Adapter, L5-20P to L21-20R Pigtail, L21-20 to L5-20 Adapter
Custom built to order
Part Number: IBX-5163-X (X = Length)
