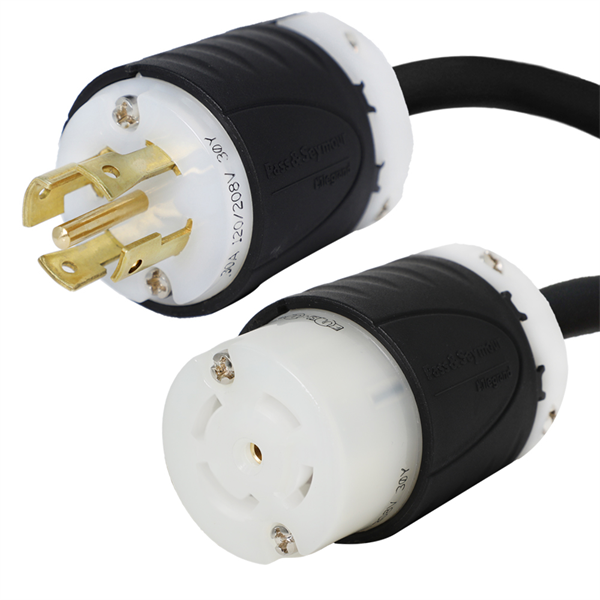

L21-20P to L21-30R Plug Adapter [1 Foot]
Our plug adapters simplify compatibility between devices that use different plug and connector configurations. This adapter converts from a L21-20P to a L21-30R for a secure, reliable fit. Rated 120/208V, these adapters are designed to handle demanding power applications safely. Constructed with 12/5 wire and a durable SJOOW jacket for flexibility, abrasion resistance, and long-term performance.
L21-20P to L21-30R Plug Adapter [1 Foot] is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Shipping & Delivery
Shipping & Delivery
Returns & Refunds
Returns & Refunds
Support
Support
-
Plug TypeL21-20P
-
Voltage
-
Wire Gauge
NEMA L21-20P to L21-30R Power Cord Plug Adapter, 1 Foot, 20A, 208V
.png)
Specifications:
| Plug Type | L21-20P |
| Connector Type | L21-30R |
| Length | 1 Foot (Custom Lengths Available) |
| Amperage | 20 Amps |
| Voltage | 208V |
| Number of Conductors | 5 |
| Wire Gauge | 12 AWG |
| Jacket Type | SJOOW |
| Temperature Rating |
105º C |
| Color | Black |
| Testing | Tested for Voltage Hi-Potential, Continuity, and Polarity |
Technical Notes: Make sure your device doesn't need more amps than the outlet allows
Applications: Convert a NEMA locking L21-30 plug to a NEMA Locking L21-20 connector
Also Known As: L21-30P Adapter, L21-30P to L21-20R Pigtail, L21-20 to L21-30 Adapter
Custom built to order
Part Number: IBX-3239-XX (XX = Length)
Fax Purchase Orders to 1-800-447-1381 or email sales@lockingpowercords.com
Call Toll-Free 1-800-590-8610 if you need technical assistance or if you need a quote
