L21-20P to 6-20R Plug Adapter
Our plug adapters simplify compatibility between devices that use different plug and connector configurations. This adapter converts from a L21-20P to a 6-20R for a secure, reliable fit. Rated 120/208V, these adapters are designed to handle demanding power applications safely. Constructed with 12/3 wire and a durable SJOOW jacket for flexibility, abrasion resistance, and long-term performance.
L21-20P to 6-20R Plug Adapter - 1 Foot is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Shipping & Delivery
Shipping & Delivery
Returns & Refunds
Returns & Refunds
Support
Support
-
Plug TypeL21-20P
-
Voltage
-
Wire Gauge
-
Jacket Type
-
Tempertature Rating
NEMA L21-20P to 6-20R Power Cord Plug Adapter, 1 Foot, 20A, 208V
.png)

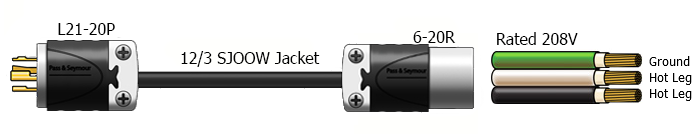

Specifications:
| Plug Type | L21-20P |
| Connector Type | 6-20R |
| Length | 1 Foot (Custom Lengths Available) |
| Amperage | 20 Amps |
| Voltage | 208V |
| Number of Conductors | 3 |
| Wire Gauge | 12 AWG |
| Jacket Type | SJOOW |
| Temperature Rating |
105º C |
| Color | Black |
| Testing | Tested for Voltage Hi-Potential, Continuity, and Polarity |
Technical Notes: Make sure your device doesn't need more amps than the outlet allows
Applications: Convert a NEMA locking 6-20 plug to a NEMA Locking L21-20 connector
Also Known As: 6-20P Adapter, 6-20P to L21-20R Pigtail, L21-20 to 6-20 Adapter
Custom built to order
Part Number: IBX-5156-X (X = Length)
Fax Purchase Orders to 1-800-447-1381 or email sales@lockingpowercords.com
Call Toll-Free 1-800-590-8610 if you need technical assistance or if you need a quote
