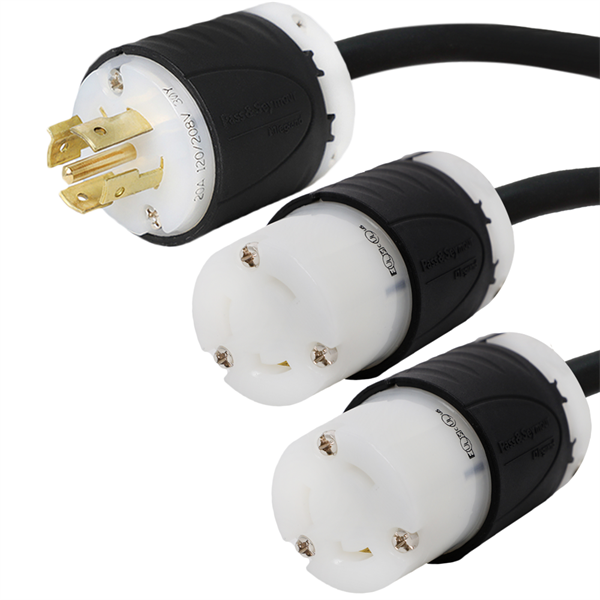

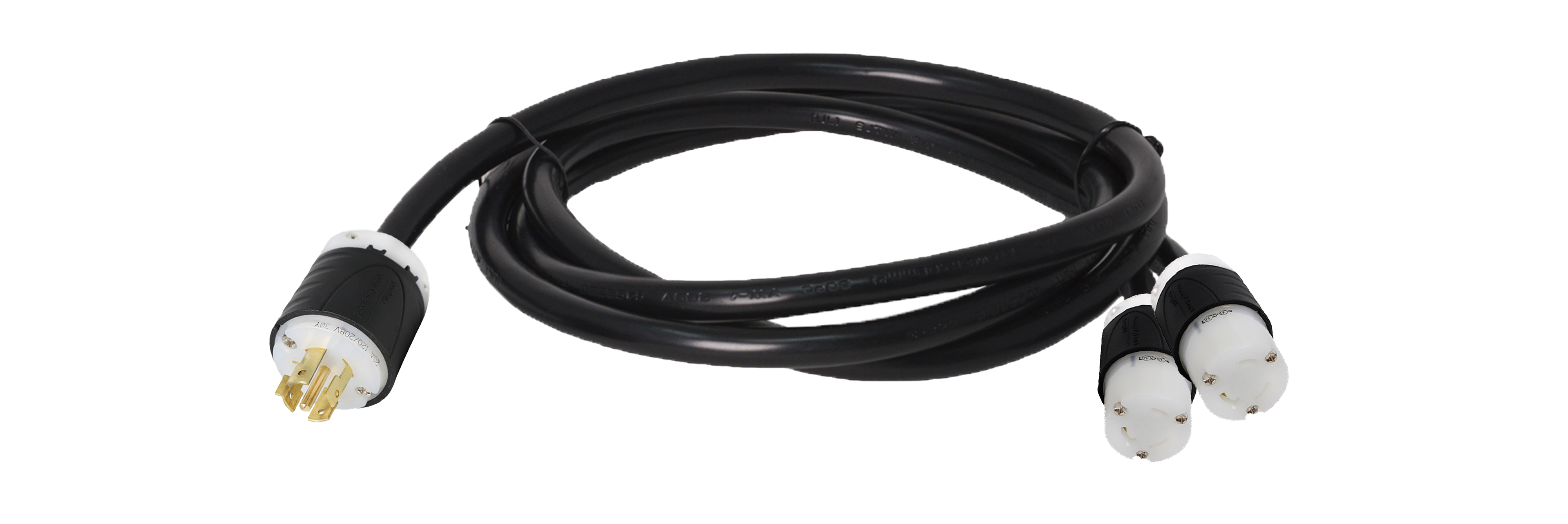

L21-20P to 2x L6-30R Splitter Power Cords
Our locking splitter cords let you power multiple devices from a single source while maintaining secure, twist-lock connections. This splitter features a L21-20P input and L6-30R x2 output(s) to prevent accidental disconnects under vibration and load. tested up to 105º C, these splitters deliver safe, consistent power in marine, RV, and industrial environments. Constructed with 12/3 conductors and a durable SJT jacket, they offer flexibility and resistance to abrasion, oil, and moisture.
L21-20P to 2x L6-30R Splitter Power Cords is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Shipping & Delivery
Shipping & Delivery
Returns & Refunds
Returns & Refunds
Support
Support
-
Connector TypeL6-30R x2
-
Amperage
-
Voltage
-
Wire Gauge
-
Temperature Rating105º C
-
Length10 Foot (8 Foot + 2 Foot Legs)
L21-20P to 2x L6-30R Y Splitter Power Cord, 10 Foot, Rated for 20 Amps, 250V

Specifications:
| Plug Type | L21-20P |
| Connector | L6-30R X 2 |
| Length | 10 Foot / 2 Foot Legs |
| Amps | 20A |
| Voltage | 250V |
| Number of Wires | 3 |
| Wire AWG | 12 AWG |
| Jacket Type | SJT |
| Temperature Rating |
105º C |
| Color | Black |
| Testing | Tested for Voltage Hi-Potential, Continuity, and Polarity |
Technical Notes: Heavy-Duty industrial grade SJT jacket
Applications: Split out an L21-20P male plug to two female L6-30R connectors
Also Known As: L21-20P to L6-30R Y Splitter Cord, L21-20P to two L6-30R, L21-20 Power Cable Splitter
Part Number: IBX-2118-XX (XX = Length)
