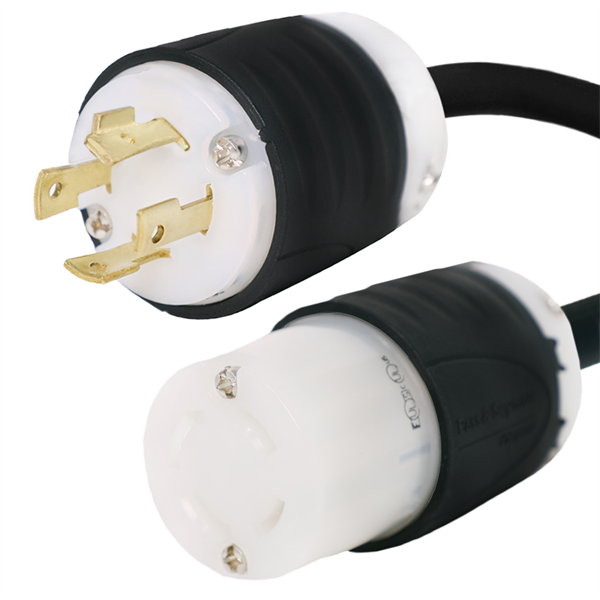

L16-20P to L16-30R Plug Adapter [1 Foot]

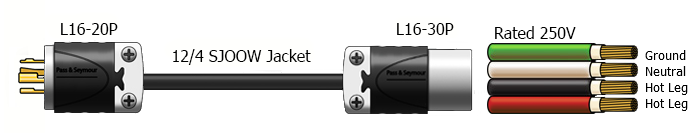

Our plug adapters simplify compatibility between devices that use different plug and connector configurations. This adapter converts from a L16-30P to a L16-20R for a secure, reliable fit. Rated 250V, these adapters are designed to handle demanding power applications safely. Constructed with 12/4 wire and a durable SJOOW jacket for flexibility, abrasion resistance, and long-term performance.
L16-20P to L16-30R Plug Adapter [1 Foot] is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Shipping & Delivery
Shipping & Delivery
Returns & Refunds
Returns & Refunds
Support
Support
-
Plug TypeL16-30P
-
Voltage
-
Wire Gauge
NEMA L16-20P to L16-30R Power Cord Plug Adapter, 1 Foot, 20A, 250V

Specifications:
| Plug Type | L16-20P |
| Connector Type | L16-30R |
| Length | 1 Foot (Custom Lengths Available) |
| Amperage | 20 Amps |
| Voltage | 250V |
| Number of Conductors | 4 |
| Wire Gauge | 12 AWG |
| Jacket Type | SJOOW |
| Temperature Rating |
105º C |
| Color | Black |
| Testing | Tested for Voltage Hi-Potential, Continuity, and Polarity |
Technical Notes: Make sure your device doesn't need more amps than the outlet allows
Applications: Convert a NEMA locking L16-30 plug to a NEMA Locking L16-20 connector
Also Known As: L16-30P Adapter, L16-30P to L16-20R Pigtail, L16-20 to L16-30 Adapter
Custom built to order
Part Number: IBX-2554-X (X = Length)
Fax Purchase Orders to 1-800-447-1381 or email sales@lockingpowercords.com
Call Toll-Free 1-800-590-8610 if you need technical assistance or if you need a quote
