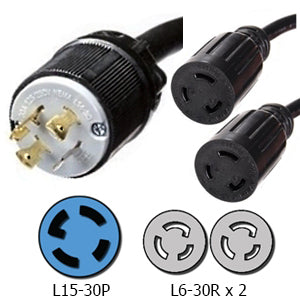

L15-30P to 2x L6-30R Y Splitter Power Cord
Our locking splitter cords let you power multiple devices from a single source while maintaining secure, twist-lock connections. This splitter features a L15-30P input and L6-30R x2 output(s) to prevent accidental disconnects under vibration and load. tested up to 105º C, these splitters deliver safe, consistent power in marine, RV, and industrial environments. Constructed with 10/3 conductors and a durable SJT jacket, they offer flexibility and resistance to abrasion, oil, and moisture.
L15-30P to 2x L6-30R Y Splitter Power Cord is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Shipping & Delivery
Shipping & Delivery
Returns & Refunds
Returns & Refunds
Support
Support
-
Plug Type
-
Connector TypeL6-30R x2
-
Amperage
-
Voltage
-
Wire Gauge
-
Jacket Type
-
Temperature Rating105º C
-
Length3 Foot / 2 Foot Legs, 6 Foot / 2 Foot Legs, 10 Foot / 2 Foot Legs
-
CertificationscUL, UL Listed
L15-30 Plug to 2x L6-30 Connector, Y Splitter Power Cord, 30 Amps, 250V

Specifications:
| Plug Type | L15-30P |
| Connector | L6-30R X 2 |
| Length | 3, 6, 10 Foot / 2 Foot Legs |
| Amps | 30A |
| Voltage | 250V |
| Number of Wires | 3 |
| Wire AWG | 10 AWG |
| Jacket Type | SJT |
| Temperature Rating |
105º C |
| Color | Black |
| Testing | Tested for Voltage Hi-Potential, Continuity, and Polarity |
| Certifications | cUL, UL Listed |

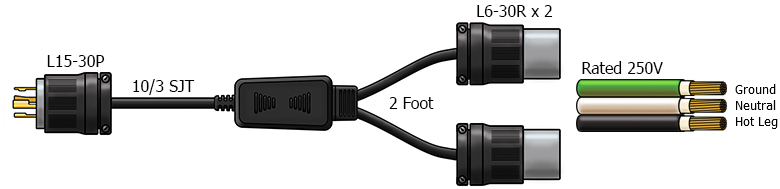

Technical Notes: Heavy-Duty 10/3 SJT Jacket
Applications: Split out an L15-30P male plug to two female L6-30R connectors
Also Known As: L15-30P to L6-30R Y Splitter Cord, L15-30P to two L6-30R, L15-30 Power Cable Splitter
Part Number: IBX-2143-X (X = Length)
