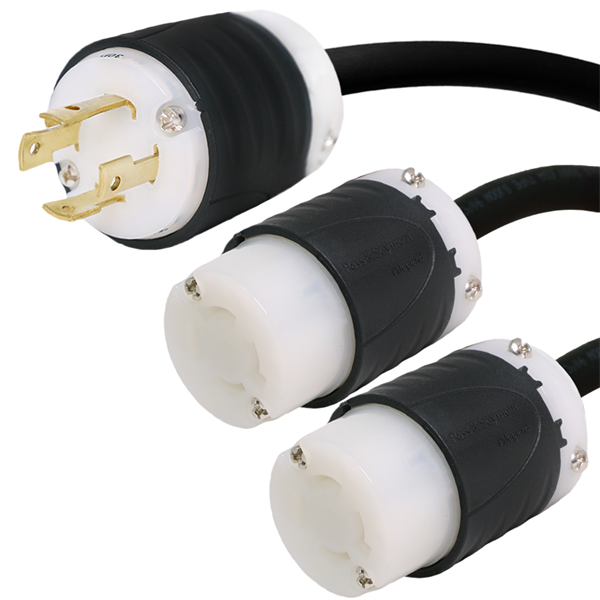

L15-30P to 2x L15-20R Splitter Power Cords
Our locking splitter cords let you power multiple devices from a single source while maintaining secure, twist-lock connections. This splitter features a L15-30P input and L15-20R x2 output(s) to prevent accidental disconnects under vibration and load. tested up to 105º C, these splitters deliver safe, consistent power in marine, RV, and industrial environments. Constructed with 10/4 conductors and a durable SJT jacket, they offer flexibility and resistance to abrasion, oil, and moisture.
L15-30P to 2x L15-20R Splitter Power Cords is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Shipping & Delivery
Shipping & Delivery
Returns & Refunds
Returns & Refunds
Support
Support
-
Plug Type
-
Connector TypeL15-20R x2
-
Amperage
-
Voltage
-
Wire Gauge
-
Jacket Type
-
Temperature Rating105º C
-
Length8 Foot Plug End / 2 Foot Legs

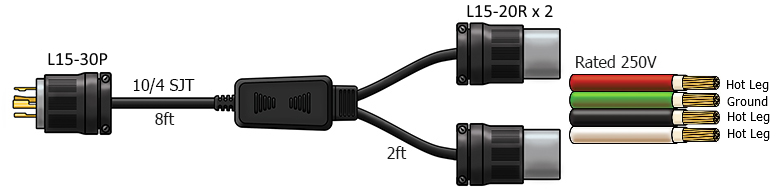

L15-30P to 2 x L15-20R Y Splitter Power Cord, Rated for 20 Amps, 250V
Specifications:
| Plug Type | L15-30P |
| Connector | L15-20R X 2 |
| Length | 8 Foot / 2 Foot Legs |
| Amps | 20A |
| Voltage | 250V |
| Number of Wires | 4 |
| Wire AWG | 10 AWG |
| Jacket Type | SJT |
| Temperature Rating |
105º C |
| Color | Black |
| Testing | Tested for Voltage Hi-Potential, Continuity, and Polarity |
| Certifications | cUL, UL Listed |
Applications: Breaks out one L15-30P male plug to two female L15-20R connectors
AKA: L15-30 to L15-20 Splitter Cords, L15-30P L15-20R Y Splitter Cable
Custom built to order
Part Number: IBX-10039-XX (XX = Length)
