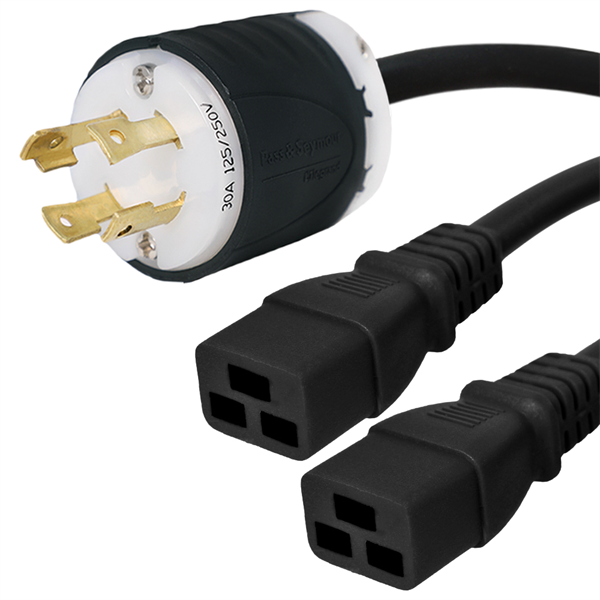

L14-30P to 2x C19 Splitter Power Cords
Our locking splitter cords let you power multiple devices from a single source while maintaining secure, twist-lock connections. This splitter features a L14-30P input and C19 x2 output(s) to prevent accidental disconnects under vibration and load. Rated, tested up to 105º C, these splitters deliver safe, consistent power in marine, RV, and industrial environments. Constructed with 12/3 conductors and a durable SJT jacket, they offer flexibility and resistance to abrasion, oil, and moisture.
L14-30P to 2x C19 Splitter Power Cords is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Shipping & Delivery
Shipping & Delivery
Returns & Refunds
Returns & Refunds
Support
Support
-
Plug Type
-
Connector TypeC19 x2
-
Amperage
-
Voltage
-
Wire Gauge
-
Jacket Type
-
Temperature Rating105º C
-
Length5 Foot (3 Foot + 2 Foot Legs), 8 Foot (6 Foot + 2 Foot Legs), 12 Foot (10 Foot + 2 Foot Branch Legs)
L14-30P to 2x C19 Y Splitter Power Cord, 10 Foot, Rated for 20 Amps, 250V

Specifications:
| Plug Type | L14-30P |
| Connector | C19 X 2 |
| Length | 3, 6, 10 Foot / 2 Foot Legs |
| Amps | 20A |
| Voltage | 250V |
| Number of Wires | 3 |
| Wire AWG | 12 AWG |
| Jacket Type | SJT |
| Temperature Rating |
105º C |
| Color | Black |
| Testing | Tested for Voltage Hi-Potential, Continuity, and Polarity |
| Certifications | cUL, UL Listed |

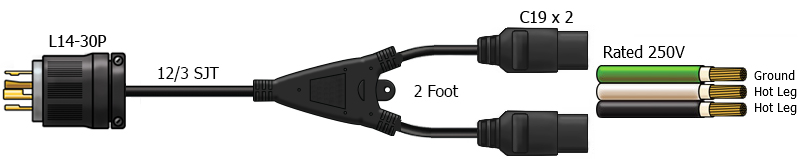

Applications: Breaks out one L14-30P male plug to two female C19 connectors
AKA: L14-30 to C19 Splitter Cords, L14-30P C19 Y Splitter Cable
Part Number: IBX-10042-XX (XX = Length)
