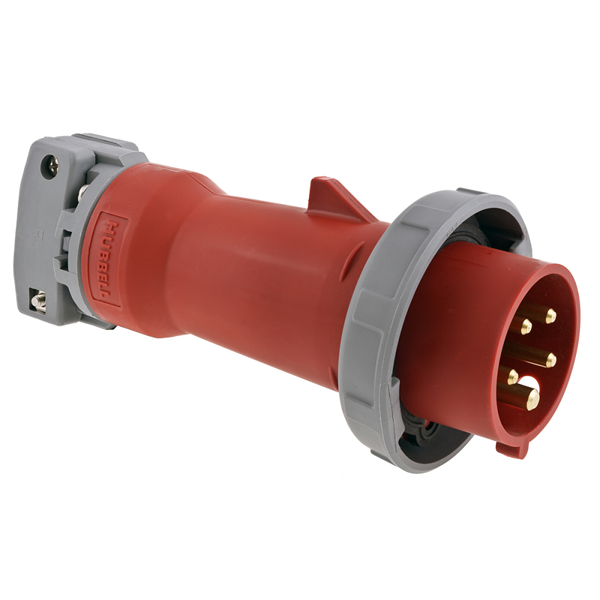

Hubbell HBL520P7W - Watertight Pin and Sleeve Male Plug, 20A/3Ø 277-480V
Specifications:
| NEMA Designation |
HBL520P7W |
| Amperage | 20A |
| Voltage | 3 Phase 277-480V |
| Poles | 4 |
| Wires | 5 |
| Contacts |
Brass |
| Housing Material |
Red Nylon |
Technical Notes: UL Listed, CSA Certified
Applications: Plug attaches to the end of a power cord, mates with an HBL520C7W connector or receptacle
Related Items:
HBL520C7W Connectors HBL520R7W Receptacles HBL520B7W Inlet
