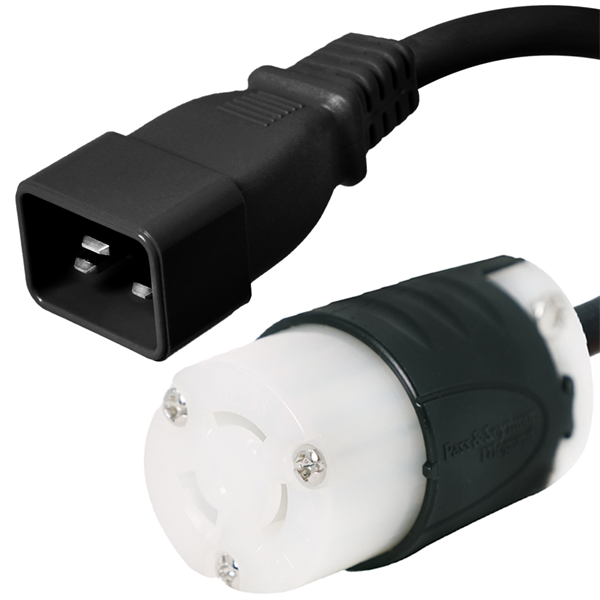

C20 to L6-15R Plug Adapter [1 Foot]
Our plug adapters simplify compatibility between devices that use different plug and connector configurations. This adapter converts from a C20 to a L6-15R for a secure, reliable fit. Rated 15A at 250V, these adapters are designed to handle demanding power applications safely. Constructed with 14/3 wire and a durable SJT jacket for flexibility, abrasion resistance, and long-term performance.
C20 to L6-15R Plug Adapter [1 Foot] is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Shipping & Delivery
Shipping & Delivery
Returns & Refunds
Returns & Refunds
Support
Support
-
Plug TypeC20
-
Amperage15A
-
Voltage
-
Wire Gauge
-
Jacket Type
-
Tempertature Rating
C20 to L6-15R Power Cord Plug Adapter, 1 Foot, 15A, 250V
.png)
Specifications:
| Plug Type | C20 |
| Connector Type | L6-15R |
| Length | 1 Foot (Custom Lengths Available) |
| Amperage | 15 Amps |
| Voltage | 250V |
| Number of Conductors | 3 |
| Wire Gauge | 14 AWG |
| Jacket Type | SJT |
| Temperature Rating |
105º C |
| Color | Black |
| Testing | Tested for Voltage Hi-Potential, Continuity, and Polarity |
Technical Notes: Make sure your device doesn't need more amps than the outlet allows
Applications: Convert a NEMA locking L5-15 plug to an IEC 320 C20 server power cord plug
Custom built to order
Part Number: IBX-1512
Fax Purchase Orders to 1-800-447-1381 or email sales@lockingpowercords.com
Call Toll-Free 1-800-590-8610 if you need technical assistance or if you need a quote
