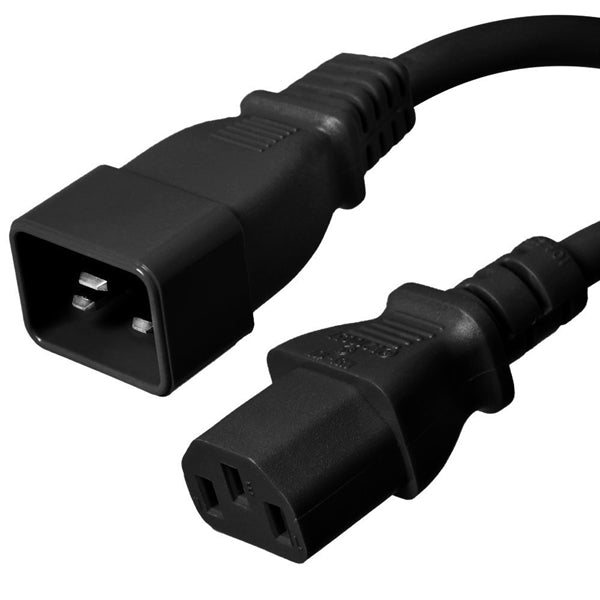

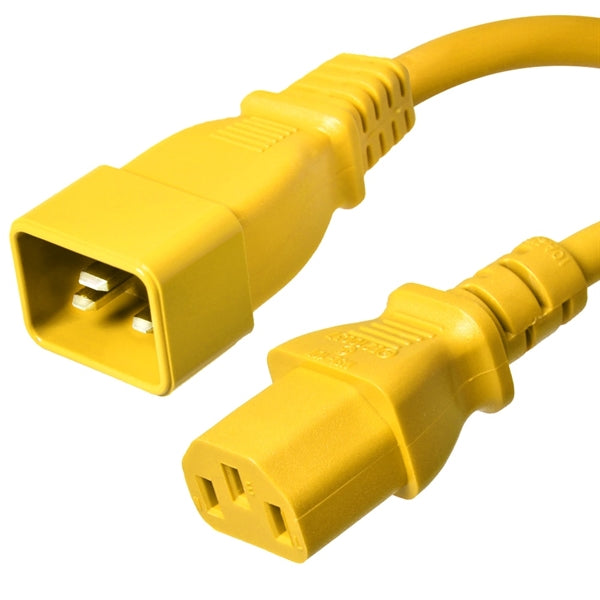

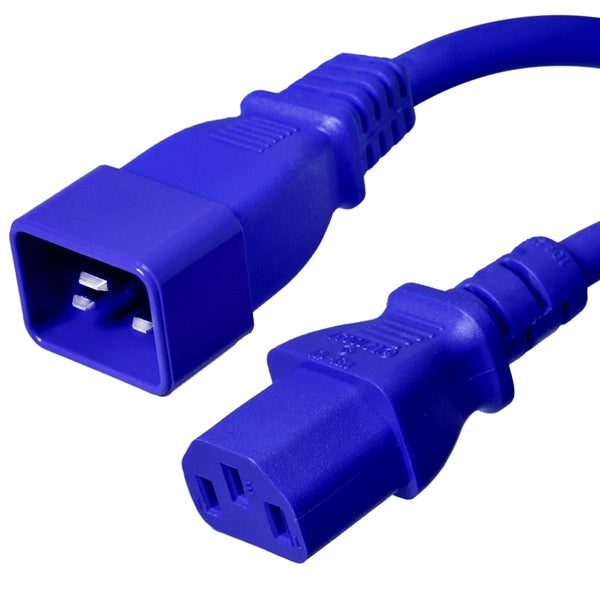

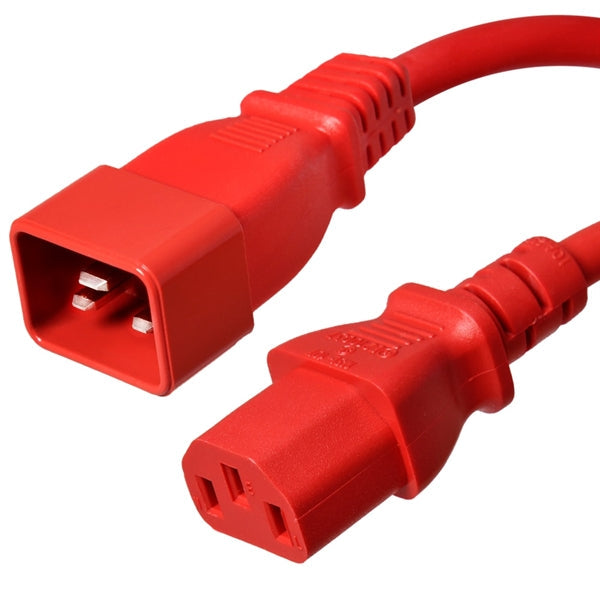

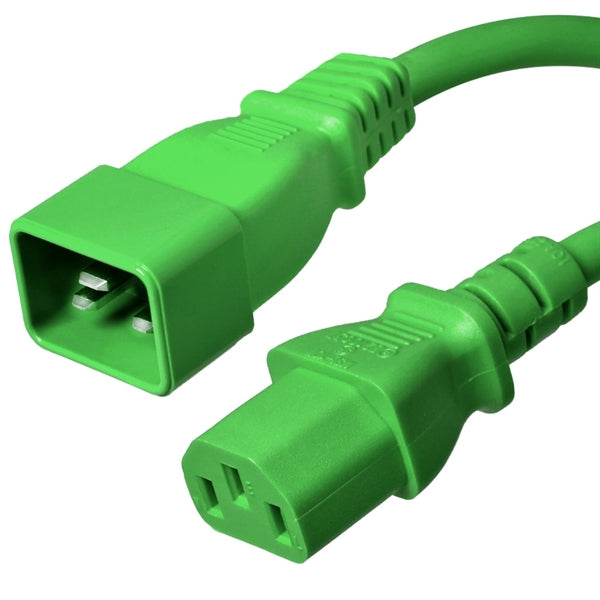

C20 to C13 Power Cord, 15A, 250V, 14/3 SJT +
Our IEC power cords are built for data centers, servers, and IT equipment that demand reliable connections and consistent performance. Each cord features a C20 to C13 configuration, ensuring compatibility with racks, PDUs, and networking gear. Rated, these cords are engineered for dependable service in critical environments. Constructed with 14/3 conductors and a SJT jacket, they provide flexibility and resistance to heat, abrasion, and wear.
C20 to C13 Power Cord, 15A, 250V, 14/3 SJT + - Black / 1 Foot is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Shipping & Delivery
Shipping & Delivery
Returns & Refunds
Returns & Refunds
Support
Support
-
Plug Type
-
Connector TypeC13
-
Amperage
-
Voltage
-
Wire Gauge
-
Jacket Type
-
Tempertature Rating
-
ColorBlack, Red, Blue, Green, Yellow, Orange
IEC C20 to C13 Power Cords - 15A, 250V, 14/3 AWG Cable
|
* C20 to C13 power cords * Connect equipment to a server rack PDU * Available in multiple colors and lengths * Rated for 15A and 250V * 14 AWG, 3 Wire SJT jacket * UL Listed, RoHS certified * Call 1-800-590-8610 for qty. discounts |
Specifications:
| Plug Type | C20 |
| Connector Type | C13 |
| Length | 1-10, 25 Foot (Custom Lengths Available) |
| Amperage | 15 Amps |
| Voltage | 250V |
| Number of Conductors | 3 |
| Wire Gauge | 14 AWG |
| Jacket Type | SJT |
| Temperature Rating | 105ยบ C |
| Testing | Tested for Voltage Hi-Potential, Continuity, and Polarity |
| Certifications | cUL, UL Listed (File # E360079) |
Tech Notes: C20 male inlet is found on high end servers and network equipment. Connects to a C13 PDU outlet Applications: Connect server and network equipment to a rack PDU in a rack enclosure
Related Terms: IEC C13 to C20 PDU cords, Black C20 server rack power cords, IEC Jumper cords
Part Number: IBX-4924-X (X = Length)

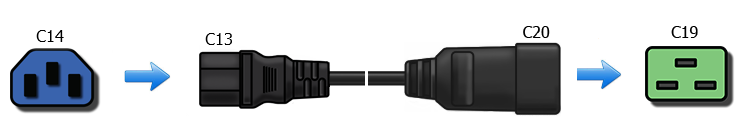

Application Shots:
