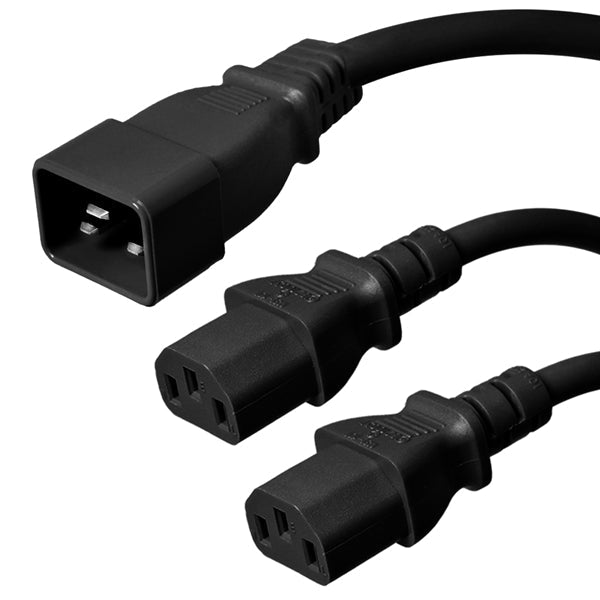

C20 to 2x C13 Splitter Power Cords
Our locking splitter cords let you power multiple devices from a single source while maintaining secure, twist-lock connections. This splitter features a C20 input and C13 x2 output(s) to prevent accidental disconnects under vibration and load. tested up to 105º C, these splitters deliver safe, consistent power in marine, RV, and industrial environments. Constructed with 12/3, 14/3 conductors and a durable SJT jacket, they offer flexibility and resistance to abrasion, oil, and moisture.
C20 to 2x C13 Splitter Power Cords - 1 Foot + 1 Foot Branch Legs is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Shipping & Delivery
Shipping & Delivery
Returns & Refunds
Returns & Refunds
Support
Support
-
Plug Type
-
Connector TypeC13 x2
-
Amperage
-
Voltage
-
Wire Gauge
-
Jacket Type
-
Temperature Rating105º C
-
Length2 Foot (1 Foot + 1 Foot Legs), 3 Foot (2 Foot + 1 Foot Legs), 4 Foot (3 Foot + 1 Foot Legs), 6 Foot (5 Foot + 1 Foot Legs)

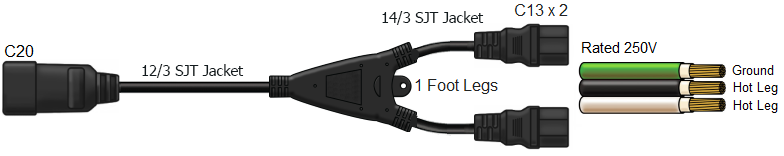

AC Power Cords, C20 to C13 Y Splitter Cords, 15A, 250V, 12/3 SJT Jacket
Specifications:
| Plug Type | IEC C20 |
| Connector Type | IEC C13 x 2 |
| Length | 1, 2, 3, 5 Foot / 1 Foot Legs |
| Amperage | 15 Amps |
| Voltage | 250V |
| Number of Conductors | 3 |
| Wire Gauge | 12 AWG Lead, 14 AWG Legs |
| Jacket Type | SJT |
| Temperature Rating |
105º C |
| Color | Black |
| Testing | Tested for Voltage Hi-Potential, Continuity, and Polarity |
| Certifications | UL Listed |
Documents: RoHS REACH Conflict Minerals Report (CMRT)
Applications: Plug two computers with a C14 male inlet on the power supply into a single C19 outlet on a PDU
AKA: C13 C20 Splitter Cords, IEC C20 to IEC C13 Splitter Cord, 2 Way Splitter Cable
Part Number: IBX-6454-XX (XX = Length)
