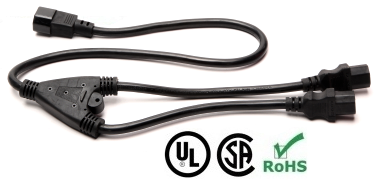

C14 to C13 Splitter Cords Rated for 15A, 250V, 14/3 SJT Jacket
Our locking splitter cords let you power multiple devices from a single source while maintaining secure, twist-lock connections. This splitter features a C14 input and C13 output(s) to prevent accidental disconnects under vibration and load. Rated, tested up to 105º C, these splitters deliver safe, consistent power in marine, RV, and industrial environments. Constructed with 14/3 conductors and a durable SJT jacket, they offer flexibility and resistance to abrasion, oil, and moisture.
C14 to C13 Splitter Cords Rated for 15A, 250V, 14/3 SJT Jacket - 1 Foot + 1 Foot Legs is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Shipping & Delivery
Shipping & Delivery
Returns & Refunds
Returns & Refunds
Support
Support
-
Plug Type
-
Connector TypeC13
-
Amperage
-
Voltage
-
Wire Gauge
-
Jacket Type
-
Temperature Rating105º C
-
Length2 Foot (1 Foot + 1 Foot Legs), 3 Foot (2 Foot + 1 Foot Legs), 4 Foot (3 Foot + 1 Foot Legs), 8 Foot (6 Foot + 2 Foot Legs), 10 Foot (8 Foot + 2 Foot Legs), 15 Foot (13 Foot + 2 Foot Branch Legs)

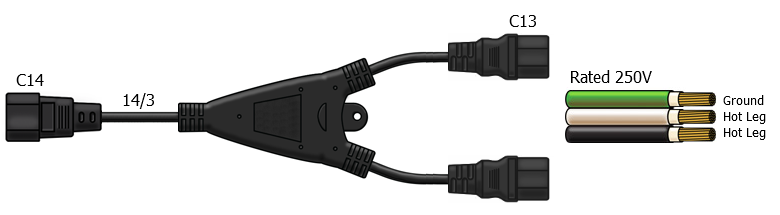

C14 to C13 Splitter Cord, 2 x C13 Legs, 15 Amps, 250V, 14/3 SJT
|
* C14 to C13 X 2 power cords * Split a C14 plug out to 2x C13 branches * Custom lengths available * Rated for 15A and 250V * 14 AWG, 3 Wire SJT cable jacket * UL Listed, RoHS certified * Call 1-800-590-8610 for qty. discounts |
Specifications:
| Plug Type | C14 |
| Connector Type | C13 X 2 |
| Length | 1-15 Feet (Custom Lengths Available) |
| Amperage | 15 Amps |
| Voltage | 250V |
| Number of Conductors | 3 |
| Wire Gauge | 14 AWG |
| Jacket Type | SJT |
| Temperature Rating |
105º C |
| Color | Black |
| Testing | Tested for Voltage Hi-Potential, Continuity, and Polarity |
| Certifications | cUL, UL Listed (File # E360079) |
Tech Notes: Splits a C14 male plug out to two female C13 connectors
Applications: Connect server and network equipment to a rack PDU in a rack enclosure
Related Terms: C13 to C14 Splitter cable, IEC 320 C14 to C13 Splitter power cord, PDU Splitter cords
Part Number: IBX-2X2309-XX (X = Length)

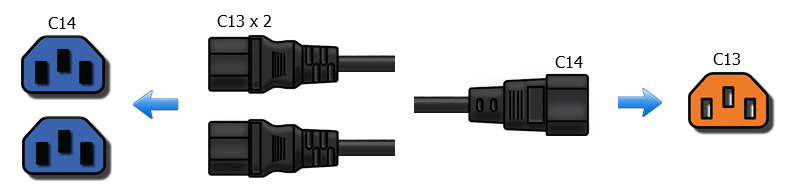

Application Shots:
