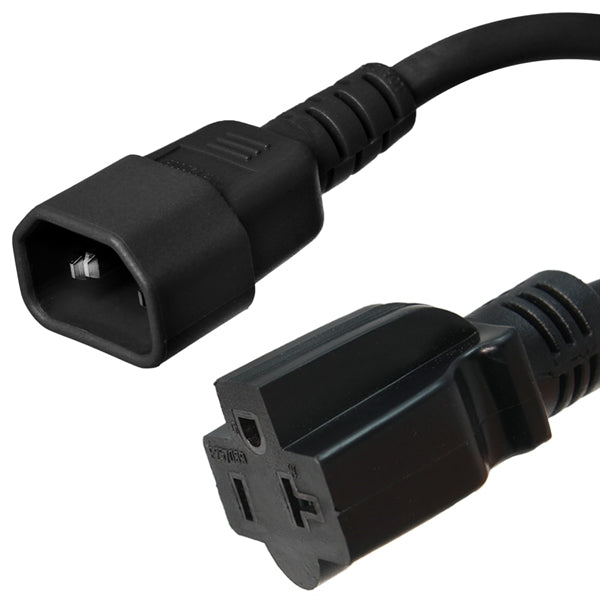

C14 to 5-20R Power Cords, 15A, 125V, 14/3 SJT [1 Foot]
Our plug adapters simplify compatibility between devices that use different plug and connector configurations. This adapter converts from a C14 to a 5-20R for a secure, reliable fit. Rated 15A at 125V, these adapters are designed to handle demanding power applications safely. Constructed with 14/3 wire and a durable SJT jacket for flexibility, abrasion resistance, and long-term performance.
C14 to 5-20R Power Cords, 15A, 125V, 14/3 SJT [1 Foot] is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Shipping & Delivery
Shipping & Delivery
Returns & Refunds
Returns & Refunds
Support
Support
-
Plug TypeC14
-
Amperage15A
-
Voltage
-
Wire Gauge
-
Jacket Type
-
Tempertature Rating

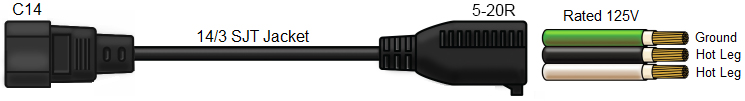

IEC C14 Plug to 5-20R Connector Power Cords, 15A, 125V, 14/3 SJT Jacket

Specifications:
| Plug Type | IEC C14 |
| Connector Type | NEMA 5-20R |
| Length | 1 Foot |
| Amperage | 15 Amps |
| Voltage | 125V |
| Number of Conductors | 3 |
| Wire Gauge | 14 AWG |
| Jacket Type | SJT |
| Temperature Rating |
105º C |
| Color | Black |
| Testing | Tested for Voltage Hi-Potential, Continuity, and Polarity |
| Certifications | UL Listed |
Applications: Plug a device with a 3-Prong 5-20P or 5-15P male into a IEC C13 receptacle
AKA: 5-20R Cords, IEC 60320 C14 Power Cords, C14 to 5-20R Cables
Part Number: IBX-3802-01
