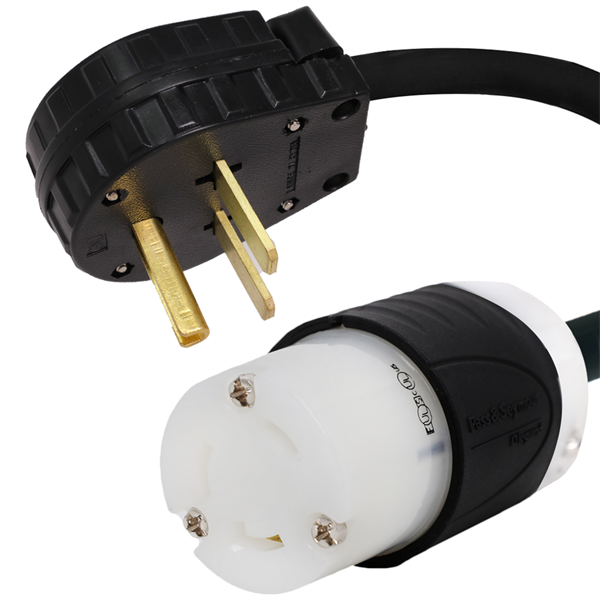

6-30P to L6-30R Plug Adapter [1 Foot]
Our plug adapters simplify compatibility between devices that use different plug and connector configurations. This adapter converts from a 6-30P to a L6-30R for a secure, reliable fit. Rated 30A at 250V, these adapters are designed to handle demanding power applications safely. Constructed with 10/3 wire and a durable SJOOW jacket for flexibility, abrasion resistance, and long-term performance.
6-30P to L6-30R Plug Adapter [1 Foot] is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Shipping & Delivery
Shipping & Delivery
Returns & Refunds
Returns & Refunds
Support
Support
-
Plug Type6-30P
-
Amperage30A
-
Voltage
-
Wire Gauge
-
Jacket Type

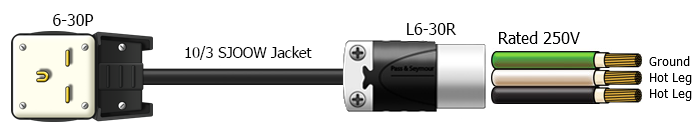

NEMA 6-30 Plug to L6-30 Connector Power Cord Plug Adapter , 1 Foot
.png)
Specifications:
| Plug Type | 6-30P |
| Connector Type | L6-30R |
| Length | 1 Foot (Custom Lengths Available) |
| Amperage | 30 Amps |
| Voltage | 250V |
| Number of Conductors | 3 |
| Wire Gauge | 10 AWG |
| Jacket Type | SJOOW |
| Temperature Rating |
105º C |
| Color | Black |
| Testing | Tested for Voltage Hi-Potential, Continuity, and Polarity |
| Certifications | cUL, UL Listed |
Technical Notes: Make sure your device doesn't need more amps than the outlet allows
Applications: Convert a NEMA locking L6-30 plug to fit a NEMA 6-30R outlet or receptacle
Also Known As: L6-30P Adapter, L6-30P to 6-30R Pigtail, 6-30 to L6-30 Adapter
Custom built to order
Part Number: IBX-5860-X (X = Length)
Fax Purchase Orders to 1-800-447-1381 or email sales@lockingpowercords.com
Call Toll-Free 1-800-590-8610 if you need technical assistance or if you need a quote
