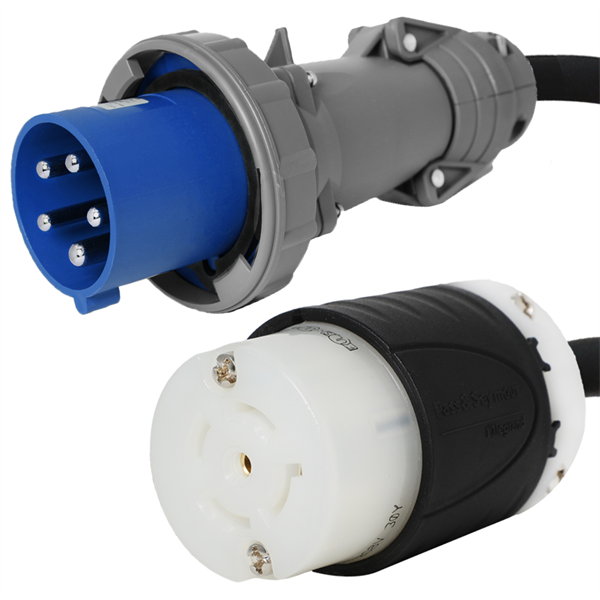

520P9W to L21-20R Plug Adapter [1 Foot]
Our plug adapters simplify compatibility between devices that use different plug and connector configurations. This adapter converts from a 520P9W to a L21-20R for a secure, reliable fit. Rated 120/208V, these adapters are designed to handle demanding power applications safely. Constructed with 10/5 wire and a durable SJOOW jacket for flexibility, abrasion resistance, and long-term performance.
520P9W to L21-20R Plug Adapter [1 Foot] is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Shipping & Delivery
Shipping & Delivery
Returns & Refunds
Returns & Refunds
Support
Support
-
Plug Type520P9W
-
Voltage
-
Wire Gauge
-
Jacket Type
520P9W to NEMA L21-20R Power Cord Plug Adapter
Specifications:

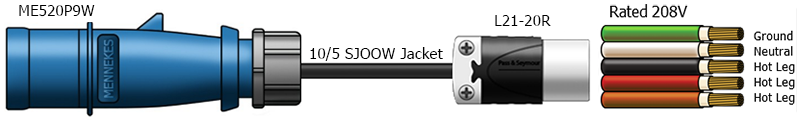

| Male Plug | IEC 60309 520P9W |
| Female Connector | L21-20R |
| Amperage | 20A |
| Voltage | 208V |
| Length | 1 Foot |
| Conductors | 5 wire |
| Wire Gauge | 10/5 |
| Jacket | SJOOW |
Technical Notes: Make sure your device doesn't need more amps than the outlet allows
Applications: Convert a NEMA locking L21-20 plug to fit a pin and sleeve 520C9W receptacle
Also Known As: L21-20P Adapter, L21-20 to IEC 309, 3 phase NEMA to pin and sleeve
Custom built to order
Part Number: IBX-3295
Fax Purchase Orders to 1-800-447-1381 or email sales@lockingpowercords.com Call Toll-Free 1-800-590-8610 if you need technical assistance or if you need a quote
