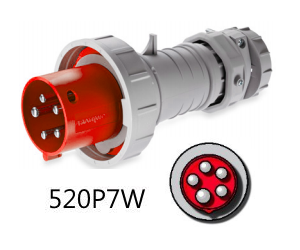

520P7W Pin and Sleeve Plug
520P7W Pin and Sleeve Plug is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Shipping & Delivery
Shipping & Delivery
Returns & Refunds
Returns & Refunds
Support
Support
IEC 60309 520P7W Pin and Sleeve Plug - 3 Phase, 4P/5W, 20A, 277/480V
Specifications:
| NEMA Designation |
520P7W |
| Amperage | 20A |
| Voltage | 277/480V |
| Poles | 4 |
| Wires | 5 |
| Wire AWG Range | 10-14 AWG |
| Contacts |
Brass |
| Housing Material |
Red Nylon |
Technical Notes: UL Listed, CSA Certified
Applications: Plug attaches to the end of a power cord, mates with an 520R7W receptacle or 520C7W connector
Click to download technical PDF file
Drawings/Dimensions
