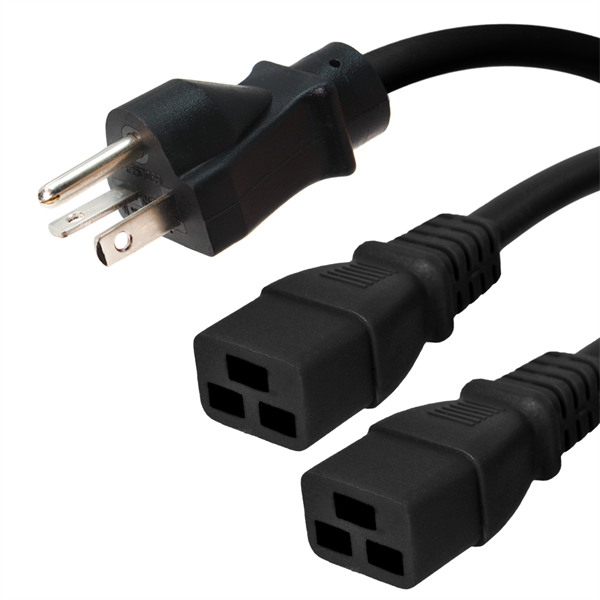

5-20P to 2x C19 Splitter Power Cords
Our locking splitter cords let you power multiple devices from a single source while maintaining secure, twist-lock connections. This splitter features a 5-20P input and C19 x2 output(s) to prevent accidental disconnects under vibration and load. tested up to 105º C, these splitters deliver safe, consistent power in marine, RV, and industrial environments. Constructed with 12/3 conductors and a durable SJT jacket, they offer flexibility and resistance to abrasion, oil, and moisture.
5-20P to 2x C19 Splitter Power Cords is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Shipping & Delivery
Shipping & Delivery
Returns & Refunds
Returns & Refunds
Support
Support
-
Plug Type
-
Connector TypeC19 x2
-
Amperage
-
Voltage
-
Wire Gauge
-
Jacket Type
-
Temperature Rating105º C
-
Length4 Foot (2 Foot + 2 Foot Branch Legs)
-
CertificationsUL Listed

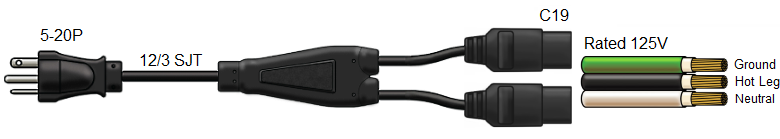

AC Power Cords, NEMA 5-20P to C19 Y Splitter Cords, 20A, 125V, 12/3 SJT Jacket
Specifications:
| Plug Type | NEMA 5-20P |
| Connector Type | IEC C19 x2 |
| Length | 2 Foot + 2 Foot |
| Amperage | 20 Amps |
| Voltage | 125V |
| Number of Conductors | 3 |
| Wire Gauge | 12 AWG |
| Jacket Type | SJT |
| Temperature Rating | 105º C |
| Color | Black |
| Testing | Tested for Voltage Hi-Potential, Continuity, and Polarity |
| Certifications | UL Listed |
AKA: C19 5-20P Splitter Cords, NEMA 5-20P to C19 Splitter Cord, 2 Way Splitter Cable
Part Number: IBX-2714-XX (XX = Length)
