Iron Box | SKU: IBX-515R2-XXYY-05

5-15R Duplex PDU Whips, 15A, 125V, 3-Wire Underfloor Cables

$52.00

Shipping calculated at checkout.

Request for Tax Exemptions

Shipping & Delivery

All shipping charges are calculated by weight. Freight collect shipping is available upon request.

In-stock items ship same day when ordered before 3:00 pm EST. Drop-ship orders follow the manufacturer's shipping policy. Blind shipping is available upon request.

Ground delivery varies from 1–5 business days depending on your region. Transit times are calculated from the ship date, not the order date.

Freight delivery is required for large or heavy items. Residential deliveries and locations without a dock may incur additional charges — we'll contact you with rates if applicable.

Returns & Refunds

Non-custom items in perfect condition may be returned within 30 days of delivery. A 20% restocking fee applies to all returns.

Note: Custom power cables are built to order and are non-cancelable and non-returnable at time of purchase.

To initiate a return, complete the Return Merchandise Authorization (RMA) form. Credits are issued once the item is received and inspected, and are applied to the original purchase account.

Support

Technical Assistance / Quote Request

Call - 1-800-590-8610
Email - sales@ironbox.com

5-15R Duplex PDU Whips - 30A, 125V, 3-Wire Data Center PDU Cables

Download PDU Whip Excel Configurator - Use for large quantities and further customizaton options - email sales@ironbox.com

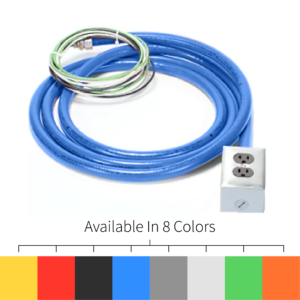

Conduit Available in 8 colors

* Data Center PDU cables w/ 2 x 5-15R outlet Box * For use in Data Center raised floors * Available in 8 colors, custom lengths and configurations * Custom labeling available * Several mounting options available * Custom length tails for termination to breaker panel * UL Listed, Built to NEC Article 645.50(E)

Specifications:

Receptacle	NEMA 5-15R x 2
Amperage	15A
Voltage	125V
Phase	Single Phase
Lengths	5 foot - 200 foot
Colors Available	Blue, Red, Yellow, Black, Green, Gray, Orange, White
Number of Wires	3 Wire
Wire Gauge	14 AWG
Cable	THHN Stranded Wire (Green/Black/White)
Conduit Width	1/2"
Circuit Breaker	Optional

Technical Notes: UL Listed, Uses Anaconda LFMC SealTite conduit Applications: For use in raised data center floors to provide power distribution to server rack equipment Part number: IBX-515R2-XXYY - XX Denotes Length, YY is color (BLK, BL, RD, GY, GN, YL, OR, WH) Custom Made and Non-Returnable

NEMA 5-15R whip, 515R2 PDU cables, Power Distribution Assemblies, Circuit Branch Cables

Customization Options:
