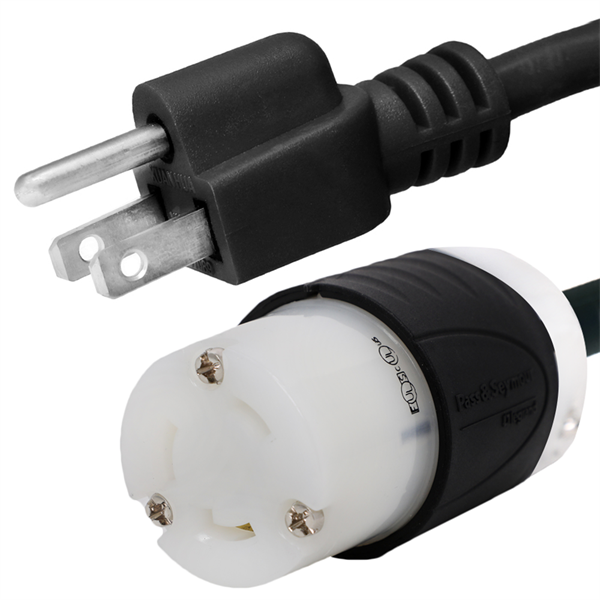

5-15P to L6-30R Plug Adapter [1 Foot]
Our plug adapters simplify compatibility between devices that use different plug and connector configurations. This adapter converts from a 5-15P to a L6-30R for a secure, reliable fit. Rated 125V, these adapters are designed to handle demanding power applications safely. Constructed with 14/3 wire and a durable SJT jacket for flexibility, abrasion resistance, and long-term performance.
5-15P to L6-30R Plug Adapter [1 Foot] is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Shipping & Delivery
Shipping & Delivery
Returns & Refunds
Returns & Refunds
Support
Support
-
Plug Type5-15P
-
Voltage
-
Wire Gauge
-
Jacket Type
-
Tempertature Rating

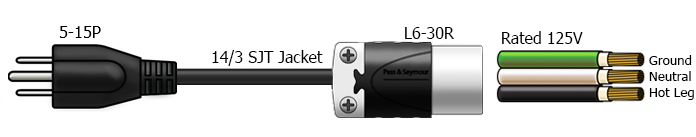

5-15P to L6-30R Power Cord Plug Adapter - 1 Foot, 15A, 125V

Specifications:
| Plug Type | 5-15P |
| Connector Type | L6-30R |
| Length | 1 Foot (Custom Lengths Available) |
| Amperage | 15 Amps |
| Voltage | 125V |
| Number of Conductors | 3 |
| Wire Gauge | 14 AWG |
| Jacket Type | SJT |
| Temperature Rating |
105º C |
| Color | Black |
| Testing | Tested for Voltage Hi-Potential, Continuity, and Polarity |
Technical Notes: Make sure your device doesn't require more amperage than your receptacle provides
Applications: Adapt a 250V L6-30P to fit a NEMA 5-15R outlet. This cord is wired to provide a 125V power source.
Custom Options: Custom lengths, SJOOW or SOOW cable type, wire grips, and various plug/connector types including valise, corrosion resistant, angled, watertight, heavy duty, and molded - Contact us for pricing
Custom built to order
AKA: 515 to l630 Adapter, 5-15 to L6-30 Pigtail, L6-30R to 5-15P plug adapter
Part Number: IBX-1030 (X = Length)
