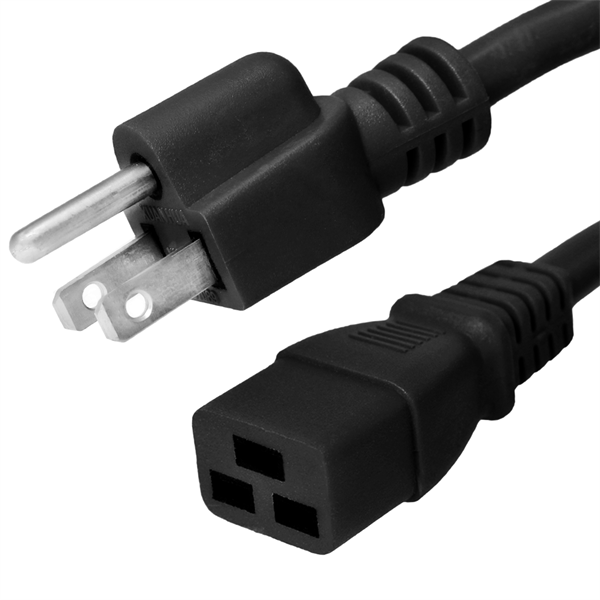

5-15P to C19 Plug Adapter, 1 Foot, 15 Amps, 125V, 14/3 SJT Power Cord
|
* 5-15P to C19 plug adapter power cord * C19 mates with a C20 male plug or inlet * Available in custom lengths and wire AWG * Rated for 15A and 125V * 14 AWG, 3 Wire SJT cable jacket * * Call 1-800-590-8610 |
Specifications:
| Plug Type | 5-15P |
| Connector Type | C19 |
| Length | 1 Foot (Custom Lengths Available) |
| Amperage | 15 Amps |
| Voltage | 125V |
| Number of Conductors | 3 |
| Wire Gauge | 14 AWG |
| Jacket Type | SJT |
| Temperature Rating |
105º C |
| Color | Black |
| Testing | Tested for Voltage Hi-Potential, Continuity, and Polarity |
| Certifications | cUL, UL Listed |
.png)
Tech Notes: 1 foot of 14/3 AWG wire w/ molded 5-15P plug and C19 connector
Applications: Adapt an IEC C20 plug to fit into a NEMA 5-15R outlet
Related Terms: C19 to 5-15P cord adapter, IEC 320 515P to C19 power cord plug adapter
Part Number: IBX-4923-X (X = Length)
Application Shots: .png)
