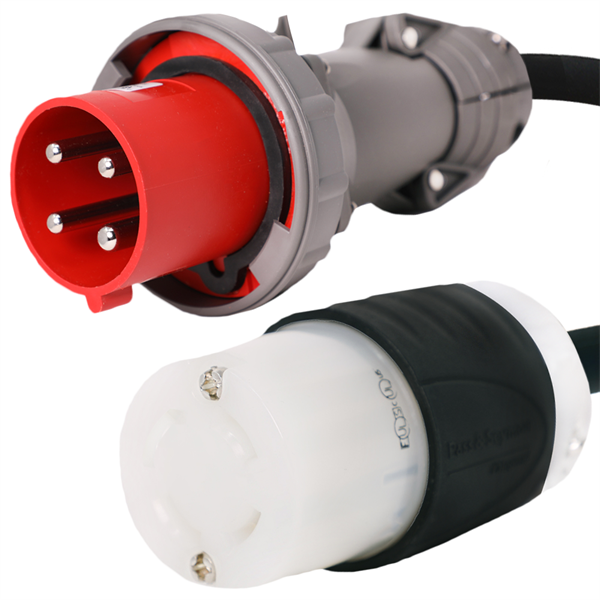

430P7W to NEMA L16-30R Plug Adapter [1 Foot]
Our plug adapters simplify compatibility between devices that use different plug and connector configurations. This adapter converts from a 430P7W to a L16-30R for a secure, reliable fit. Rated 480V, these adapters are designed to handle demanding power applications safely. Constructed with 10/4 wire and a durable SJOOW jacket for flexibility, abrasion resistance, and long-term performance.
430P7W to NEMA L16-30R Plug Adapter [1 Foot] is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Shipping & Delivery
Shipping & Delivery
Returns & Refunds
Returns & Refunds
Support
Support
-
Plug Type430P7W
-
Voltage
-
Wire Gauge
430P7W to L16-30R Pigtail Power Cord Plug Adapter
Specifications:
| Male Plug |
430P7W (IEC 60309) |
| Female Connector | NEMA L16-30R |
| Amperage | 30 Amps |
| Voltage | 480V |
| Length | 1 Foot |
| Conductors | 4 wire |
| Wire Gauge | 10/4 |
| Jacket | SJOOW |

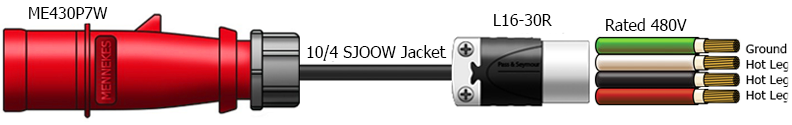

Technical Notes: Uses 10/4 SJOOW premium grade water/oil resistant jacket - Ground is in 7 O'Clock position
Applications: Convert a pin and sleeve L16-30 plug to a pin and sleeve 430P7W plug
For use in areas of high moisture, generators, data centers, watertight marine applications
AKA: 430P7W Pin and Sleeve Adapter, 30A pin and sleeve cord, 430P7W to L16-30R
Custom built to order
Part Number: IBX-2639
