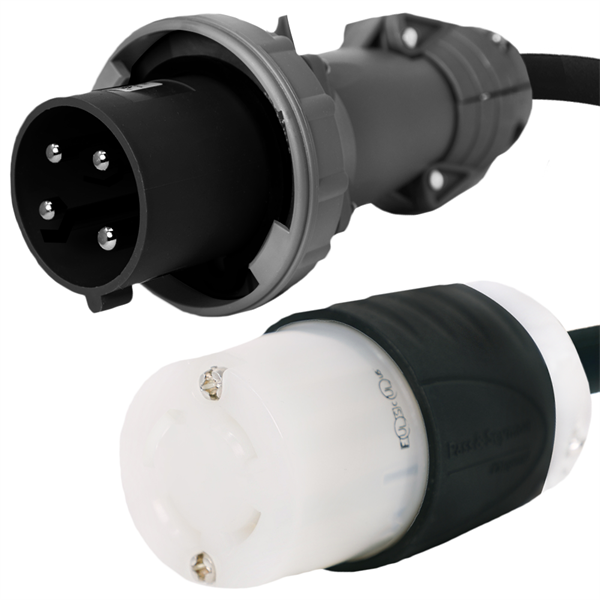

430P5W to NEMA L17-30R Plug Adapter [1 Foot]
Our plug adapters simplify compatibility between devices that use different plug and connector configurations. This adapter converts from a 430P5W to a L17-30R for a secure, reliable fit. Rated 600V, these adapters are designed to handle demanding power applications safely. Constructed with 10/4 wire and a durable SJOOW jacket for flexibility, abrasion resistance, and long-term performance.
430P5W to NEMA L17-30R Plug Adapter [1 Foot] is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Shipping & Delivery
Shipping & Delivery
Returns & Refunds
Returns & Refunds
Support
Support
-
Plug Type430P5W
-
Voltage
-
Wire Gauge
-
Jacket Type

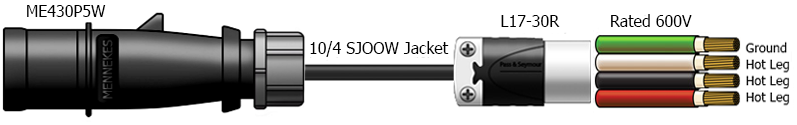

430P5W to L17-30R Pigtail Power Cord Plug Adapter
Specifications:
| Male Plug |
430P5W (IEC 60309) |
| Female Connector | NEMA L17-30R |
| Amperage | 30 Amps |
| Voltage | 600V |
| Length | 1 Foot |
| Conductors | 4 wire |
| Wire Gauge | 10/4 |
| Jacket | SJOOW |
Technical Notes: Ground is in the 5 O'Clock Position
Applications: Convert a pin and sleeve L17-30 plug to a pin and sleeve 420P5W plug
For use in areas of high moisture, generators, data centers, watertight marine applications
AKA: 430P5W Pin and Sleeve Adapter, Hubbell 430P5W, 430P5W to L17-30R
Custom built to order
Part Number: IBX-2641
