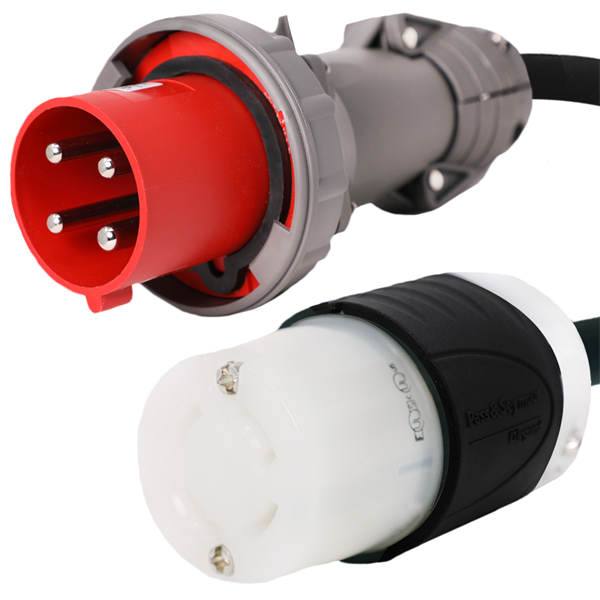

420P9W to NEMA L15-20R Plug Adapter [1 Foot]
Our plug adapters simplify compatibility between devices that use different plug and connector configurations. This adapter converts from a 420P9W to a L15-20R for a secure, reliable fit. Rated 250V, these adapters are designed to handle demanding power applications safely. Constructed with 10/4 wire and a durable SJOOW jacket for flexibility, abrasion resistance, and long-term performance.
420P9W to NEMA L15-20R Plug Adapter [1 Foot] is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Shipping & Delivery
Shipping & Delivery
Returns & Refunds
Returns & Refunds
Support
Support
-
Plug Type420P9W
-
Voltage
-
Wire Gauge
-
Jacket Type

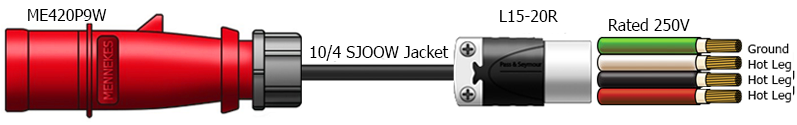

420P9W to L15-20R Power Cord Plug Adapter
Specifications:
| Male Plug |
420P9W (IEC 60309) |
| Female Connector | NEMA L15-20R |
| Amperage | 20 Amps |
| Voltage | 250V |
| Length | 1 Foot |
| Conductors | 4 wire |
| Wire Gauge | 10/4 |
| Jacket | SJOOW |
Technical Notes: Uses 10/4 SJOOW premium grade water/oil resistant jacket - Ground is in the 9 O'Clock position
Applications: Convert a pin and sleeve L15-20 plug to a pin and sleeve 420P9W plug
For use in areas of high moisture, generators, data centers, watertight marine applications
AKA: 420P9W Pin and Sleeve Adapter, 20A pin and sleeve cord, 420P9W to L15-20P
Custom built to order
Part Number: IBX-2625
