Connector Type5-20R x4
-
Amperage20A
-
Cable TypeTHHN Stranded Wire (Green/Black/White)
-
Conduit ColorBlue, Red, Green, Yellow, Orange, Black, White
-
Connector Type5-20R x4

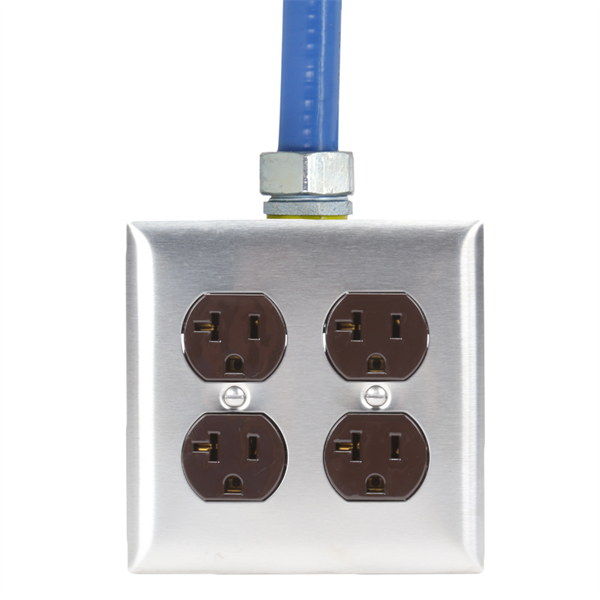

5-20R Quad Box PDU Whips - 20A, 125V, 3-Wire Data Center PDU Cables
Download PDU Whip Excel Configurator - Use for large quantities and further customizaton options - email sales@ironbox.com![]() |
* Data Center PDU cables w/ 4 x 5-20R outlet Box * For use in Data Center Raised Floors * Available in 8 colors, custom lengths & configurations * Custom labeling available * Several mounting options available * Custom length tails for termination to breaker panel * UL Listed, Built to NEC Article 645.50(E) |
Specifications:
| Receptacle | NEMA 5-20R x 4 |
| Amperage | 20A |
| Voltage | 125V |
| Phase | Single Phase |
| Lengths | 5 foot - 200 foot - Custom Lengths |
| Colors Available | Blue, Red, Yellow, Black, Green, Gray, Orange, White |
| Number of Wires | 3 Wire |
| Wire Gauge | 12 AWG |
| Cable | THHN Stranded Wire (Green/Black/White) |
| Conduit Width | 1/2" |
| Circuit Breaker | Optional |
Technical Notes: UL Listed, Uses Anaconda LFMC SealTite conduit
Applications: For use in raised data center floors to provide power distribution to server rack equipment
Part number: IBX-520R4-XXYY - XX Denotes Length, YY is color (BLK, BL, RD, GY, GN, YL, OR, WH)
Custom Made and Non-Returnable
NEMA 5-20R quad whip, 520R4 PDU cables, 5-20R PDU, Power Distribution Assemblies, Branch Circuit Cables
Customization Options:
Fax Purchase Orders to 1-800-447-1381 or email sales@ironbox.com Call Toll-Free 1-800-590-8610 if you need technical assistance or if you need a quote
