PDU Whips & Data Center Power Basics
Everything you need to understand data center power distribution — from PDU whip cables and raised-floor routing to single-phase vs three-phase systems and voltage selection. A reference for facility managers, data center engineers, and IT infrastructure teams.
PDU Whips & Data Center Power Basics
What is a PDU Whip?

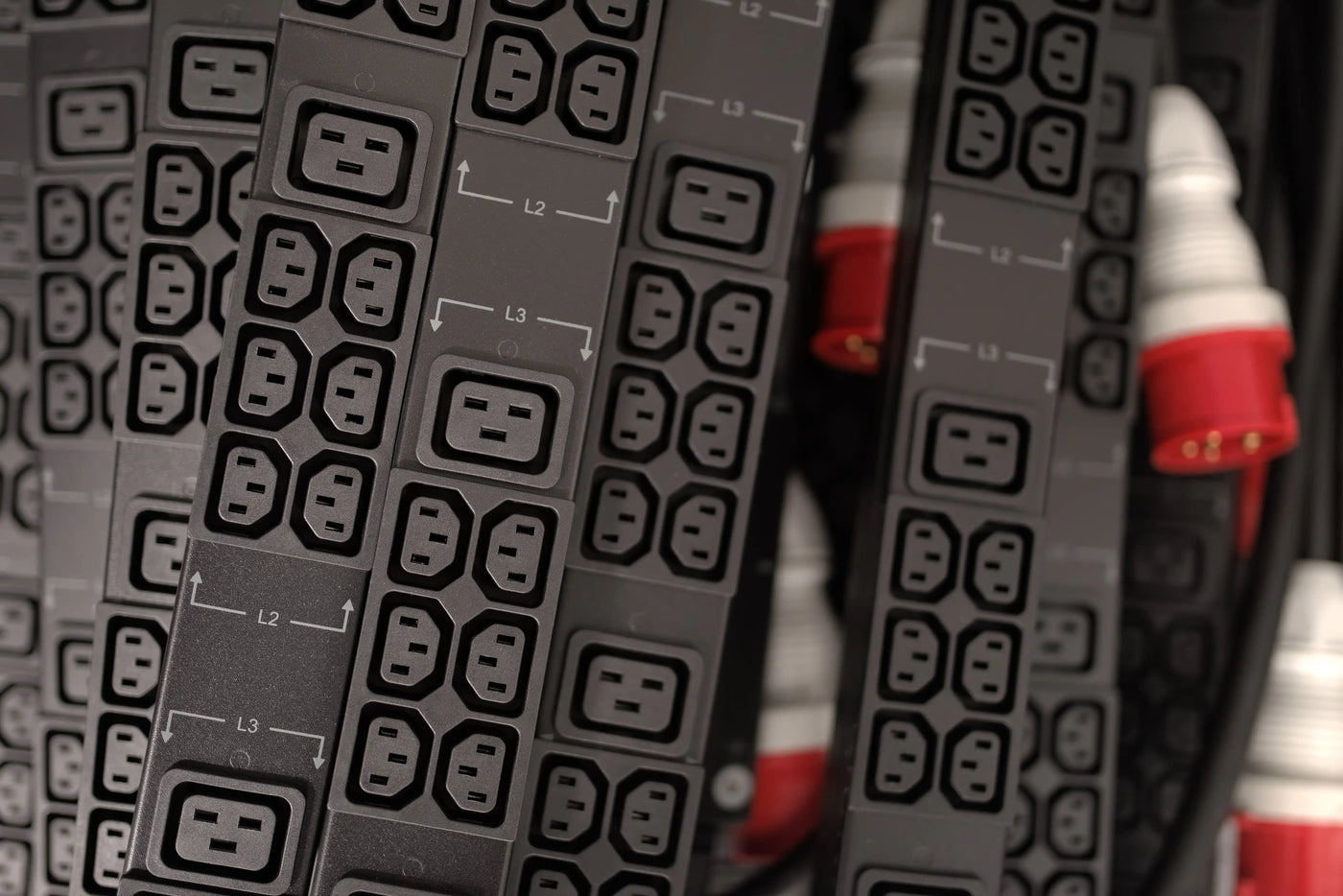

A PDU whip is a flexible power cable used to connect a facility power source to a rack-mounted Power Distribution Unit (PDU). In data centers, whips are commonly routed beneath raised floors to deliver power safely and efficiently to equipment racks.
PDU whips are built to specific voltage, amperage, phase, and connector requirements, ensuring compatibility with both the upstream power source and downstream equipment.
PDU Whips & Data Center Power Basics
Raised-Floor Power Basics
In raised-floor data centers, electrical power is typically distributed below the floor and routed up to equipment racks using whips. This approach allows for:
- - Cleaner cable management
- - Improved airflow
- - Easier reconfiguration as rack layouts change
All under-floor power cabling must meet applicable NEC and UL requirements to ensure safety and compliance.
PDU Whips & Data Center Power Basics
Single-Phase vs Three-Phase Power
Single-phase power is commonly used for smaller loads and individual racks. It is simple, widely supported, and typical in lower-density deployments.
Three-phase power is used in higher-density environments where efficiency and load balancing are critical. It allows more power to be delivered using smaller conductors and is common in modern data centers.
PDU Whips & Data Center Power Basics
120/208V vs 277/480V
- - 120/208V systems are typically used for mixed IT loads and standard rack equipment
- - 277/480V systems are common in large facilities where power is stepped down closer to the rack for efficiency
The choice depends on facility design, rack density, and equipment requirements.
