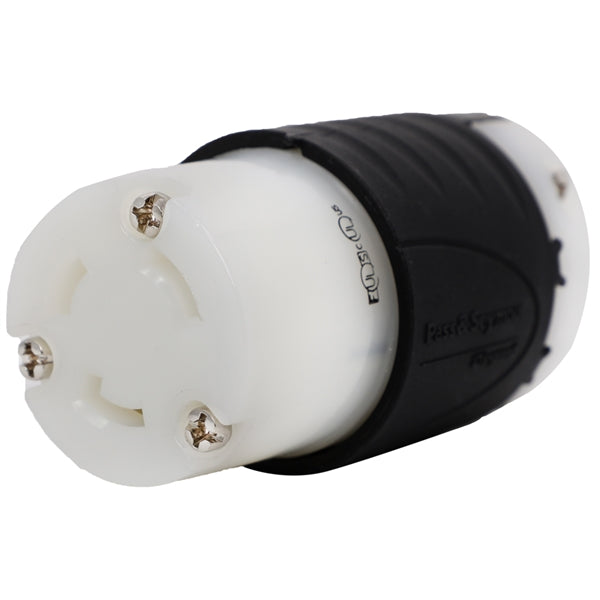

Pass and Seymour L5-30R Locking Connector
Pass and Seymour L5-30R Locking Connector is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Shipping & Delivery
Shipping & Delivery
Returns & Refunds
Returns & Refunds
Support
Support
NEMA L5-30R Locking Connector, 30A, 125V, 1-Pole, 3-Wire
Specifications:
| Connector Type | L5-30R |
| Amperage | 30A |
| Voltage | 125V |
| Poles/Wire | 2/3 |
| Wire AWG Range | 14/3 to 10/3 |
| Temperature Rating |
105º C |
| Color | Black |
| Housing | Industrial Grade Dupont Nylon |
| Certifications | UL Listed |
Applications: Locking L5-30R power cord plug mounts onto the end of a 3-wire electrical cable
AKA: L530 connector, L530, Locking L5-30R, L530R NEMA
Part Number: L530C
Fax Purchase Orders to 1-800-447-1381 or email sales@lockingpowercords.com
-
# of Poles/Wires2-Pole, 3 Wire
-
Connector TypeL5-30R
-
# of Poles/Wires2-Pole, 3 Wire
-
Wire AWG Range14/3 to 10/3
-
HousingIndustrial Grade Dupont Nylon
-
Temperature Rating105º C
