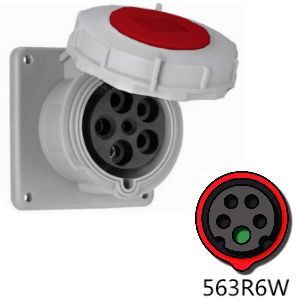

Mennekes ME563R6W 63A, 220-380/240-415V, Pin and Sleeve Flanged Receptacle Rated for 63A/220-380, 240/415V
Mennekes ME563R6W 63A, 220-380/240-415V, Pin and Sleeve Flanged Receptacle Rated for 63A/220-380, 240/415V is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Shipping & Delivery
Shipping & Delivery
Returns & Refunds
Returns & Refunds
Support
Support
Mennekes 563R6W Outlet, 63A, 220-380V, IEC 60309

Specifications:
| Outlet Type | 563R6W (IEC 60309) |
| Amperage | 63 Amps |
| Voltage | 220-380V |
| Manufacturer Part # | ME563R6W |
| # of Poles / Wires | 4-Pole, 5 Wire |
| Wire AWG Compatibility | 4 AWG to 14 AWG |
| IP Rating | IP67 |
| Phase |
Single Phase |
| Color | Red |
| Certifications | UL Listed |
Applications: Mounts into a wall and is compatible with 563P6W plug
Part # Explanation: 563R6W - 5 = # of Wires, 63 = Amps, R = Outlet, 6 = Clock Postion of Ground, W = Watertight
