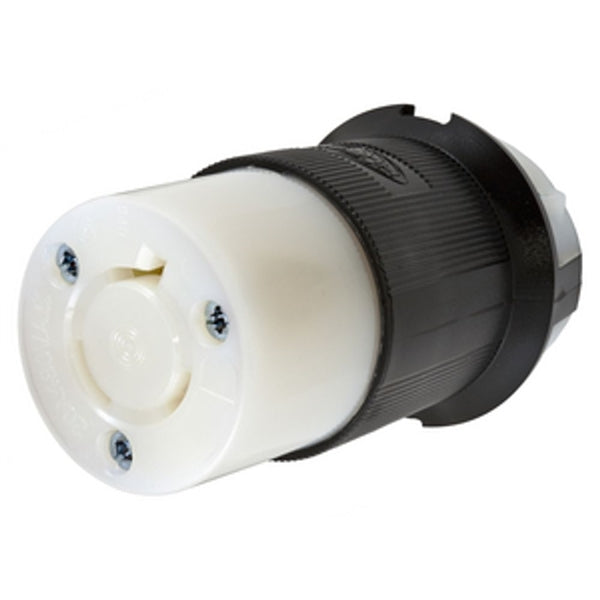

Hubbell HBL2343 - NEMA L8-20R Twist-Lock® Connector Rated for 20A, 480V
Specifications:
| Connector Type | L8-20R Twist Lock |
| Amperage | 20A |
| Voltage | 480V |
| Poles/Wire | 2/3 |
| Wire AWG Range | 14/3 to 12/3 SOOW |
| Color | Black |
| Housing | Industrial Grade Dupont Nylon |
| Certifications | UL Listed |
Applications: Twist Lock L8-20R power cord connector mates with an L8-20P plug or inlet
AKA: HBL 2343, Hubbell 2343, Hubbell L8-20R Connector, 20A Twist-Lock® Connector
Part Number: HBL2343
Fax Purchase Orders to 1-800-447-1381 or email sales@lockingpowercords.com
-
# of Poles/Wires2-Pole, 3 Wire
-
# of Poles/Wires2-Pole, 3 Wire
-
Wire AWG Range14/3 to 12/3 SOOW
-
HousingIndustrial Grade Dupont Nylon
