Iron Box  |  SKU: HBL2836

Hubbell L23-30R Twist-Lock® Flanged Outlet Rated for 30A/3ØY 347/600V

$167.40
Shipping calculated at checkout.

Request for Tax Exemptions

Shipping & Delivery

All shipping charges are calculated by weight. Freight collect shipping is available upon request.

In-stock items ship same day when ordered before 3:00 pm EST. Drop-ship orders follow the manufacturer's shipping policy. Blind shipping is available upon request.

Ground delivery varies from 1–5 business days depending on your region. Transit times are calculated from the ship date, not the order date.

Freight delivery is required for large or heavy items. Residential deliveries and locations without a dock may incur additional charges — we'll contact you with rates if applicable.

Returns & Refunds

Non-custom items in perfect condition may be returned within 30 days of delivery. A 20% restocking fee applies to all returns.

Note: Custom power cables are built to order and are non-cancelable and non-returnable at time of purchase.

To initiate a return, complete the Return Merchandise Authorization (RMA) form. Credits are issued once the item is received and inspected, and are applied to the original purchase account.

Support

Technical Assistance / Quote Request

Call - 1-800-590-8610
Email - sales@ironbox.com

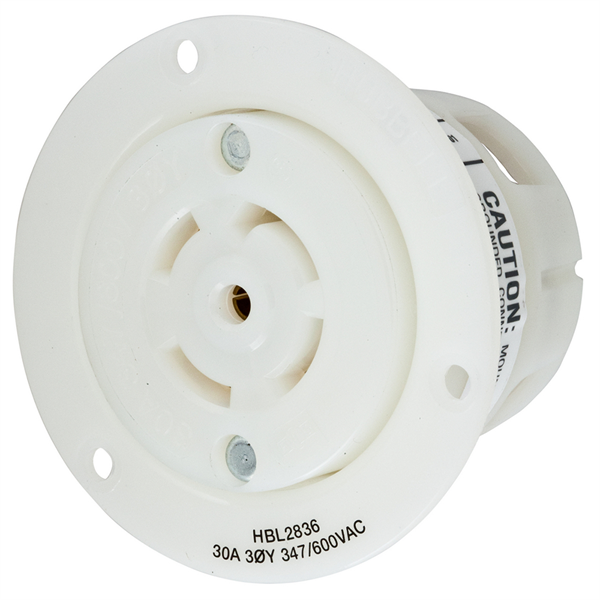

Hubbell HBL2836-NEMA L23-30R Twist-Lock® Flanged Outlet, 30A/3ØY 347/600V

Specifications:

NEMA Designation L23-30R
Amperage 30A
Voltage 347/600V
Poles/Wire 3ØY 4/5
Contacts Brass
Housing Material White Nylon
Certifications UL Listed, CSA Certified

Applications: Mounts to your electrical distribution panel, providing 30A power to your components

AKA: HBL 2836, Hubbell 2836, Hubbell L23-30R, 30A Twist-Lock® Outlet

Part Number: HBL2836
