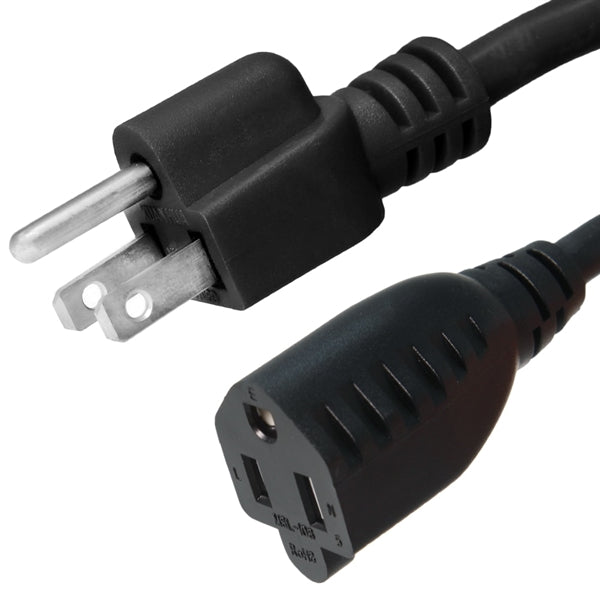

NEMA 5-15 Extension Power Cords, 15 Amps, 125V, 14 AWG (5-15P to 5-15R)
![]() |
* 5-15P plug to 5-15R connector power cords
* Connect computers/servers to a rack pdu * Available in multiple lengths * Rated for 15A and 125V * 14 AWG, 3 Wire SJT cable jacket * * Call 1-800-590-8610 |
Specifications:
| Plug Type | 5-15P |
| Connector Type | 5-15R |
| Length | 1, 3, 6, 10, 15, 25, 35, 50 Foot (Custom Lengths Available) |
| Amperage | 15 Amps |
| Voltage | 125V |
| Number of Conductors | 3 |
| Wire Gauge | 14 AWG |
| Jacket Type | SJT |
| Temperature Rating |
105º C |
| Color | Black |
| Testing | Tested for Voltage Hi-Potential, Continuity, and Polarity |
| Certifications | cUL, UL Listed (File # E360079) |

Tech Notes: C13 mates w/ C14 male inlet, usually found on a computer power supply
Applications: Connect server and network equipment to a rack PDU in a rack enclosure
Related Terms: 5-15R to 5-15P cable, NEMA 5-15P power cord, 5-15P to 5-15R, 5-15R 5-15P PDU cords
Part Number: IBX-4916-X (X = Length)
Application Shots:
