Plug TypeL5-15P
-
Connector TypeL5-30R
-
Amperage15A
-
Connector TypeL5-30R
-
Length1 Foot, 3 Foot, 6 Foot, 10 Foot, 20 Foot, 40 Foot, 100 Foot (12 AWG)
-
Temperature Rating105º C

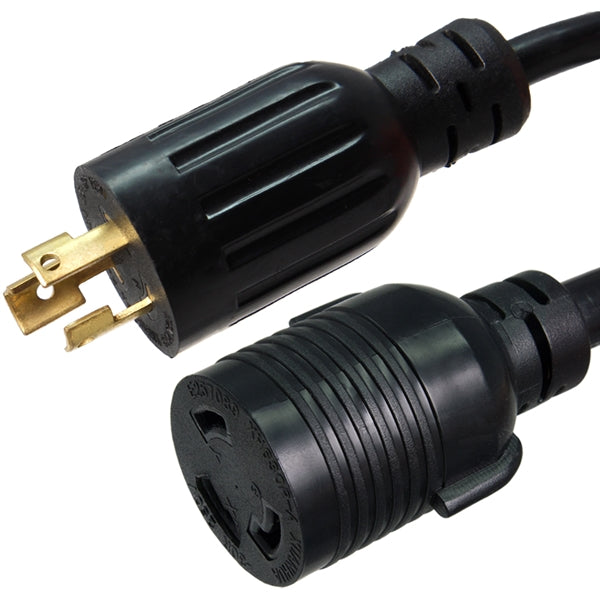

Power Cord, L5-15P Plug to L5-30R Connector, 15 Amps, 125V, 14/3 SJT
|
L5-15P to L5-30R extension cords * Molded Plug and Connector * Available in multiple lengths * Rated for 15A and 125V * 14 AWG, 3 Wire SJT cable jacket * UL Listed, RoHS certified * Call 1-800-590-8610 for qty. discounts |

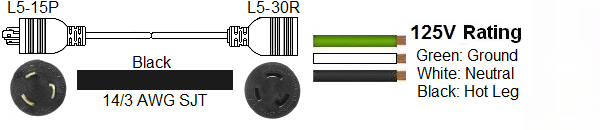

Specifications:
| Plug Type | L5-15P |
| Connector Type | L5-30R |
| Length | 1 Foot (Custom Lengths Available) |
| Amperage | 15 Amps |
| Voltage | 125V |
| Number of Conductors | 3 |
| Wire Gauge | 14 AWG |
| Jacket Type | SJT |
| Temperature Rating | 105º C |
| Color | Black |
| Testing | Tested for Voltage Hi-Potential, Continuity, and Polarity |
| Certifications | cUL, UL Listed |
Tech Notes: 1 foot is molded on both ends, longer lengths are custom built
Applications: Allows you to plug a device with a L5-30P plug into a locking L5-15R receptacle
**This item is custom built to order.
Related Terms: L5-30R to L5-15P cable, NEMA L5-15 plug adapter, L5-15P to L5-30R, Locking L5-15 power cord
Part Number: IBX-3530-X (X = Length)
