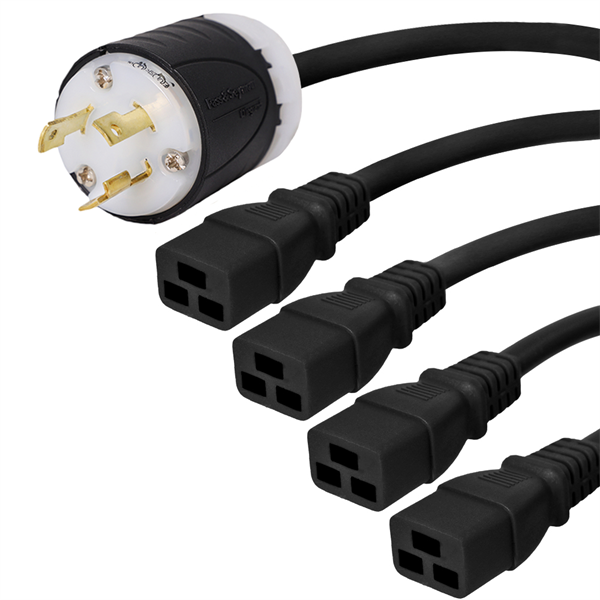

L6-30P to 4x C19 Splitter, 20A, 12/3 AWG, 10FT
Our locking splitter cords let you power multiple devices from a single source while maintaining secure, twist-lock connections. This splitter features a L6-30P input and C19 x4 output(s) to prevent accidental disconnects under vibration and load. tested up to 105º C, these splitters deliver safe, consistent power in marine, RV, and industrial environments. Constructed with 12/3 conductors and a durable SJT jacket, they offer flexibility and resistance to abrasion, oil, and moisture.
L6-30P to 4x C19 Splitter, 20A, 12/3 AWG, 10FT is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Shipping & Delivery
Shipping & Delivery
Returns & Refunds
Returns & Refunds
Support
Support
-
Connector TypeC19 x4
-
Temperature Rating105º C
-
Length8 Foot Main Branch + 2 Foot Legs (Custom Lengths Available)
L6-30P to C19 Splitter Cords, 4 x C19 Legs, 250V, 12/3 AWG Cable, 10 ft
|
* L6-30P to C19 X 4 power cords * Split a L6-30P plug out to 4x C19 branches * Custom lengths available * Rated for 20A and 250V * 12 AWG, 3 Wire SJT cable jacket * UL Listed, RoHS certified * Call 1-800-590-8610 for qty. discounts |
Specifications:
| Plug Type | L6-30P |
| Connector Type | C19 X 4 |
| Length | 8 Foot Main Branch + 2 Foot Legs (Custom Lengths Available) |
| Amperage | 20 Amps |
| Voltage | 250V |
| Number of Conductors | 3 |
| Wire Gauge | 12 AWG |
| Jacket Type | SJT |
| Temperature Rating |
105º C |
| Color | Black |
| Testing | Tested for Voltage Hi-Potential, Continuity, and Polarity |
| Certifications | cUL, UL Listed |
Tech Notes: Splits a L6-30P male plug out to four C19 connectors
Applications: Connect server and network equipment to a rack PDU in a rack enclosure
Related Terms: L6-30P to C19 Splitter cable, NEMA L6-30P to IEC C19 Splitter power cord, Locking Splitter cords
Part Number: IBX-30115
