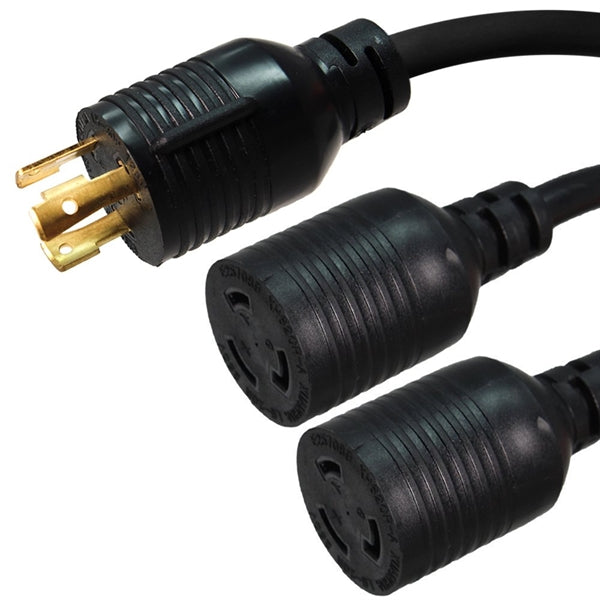

L6-30P to 2x L6-20R Splitter, 20A, 12/3 AWG, 10FT + 2x2ft
Our locking splitter cords let you power multiple devices from a single source while maintaining secure, twist-lock connections. This splitter features a L6-30P input and L6-20R x2 output(s) to prevent accidental disconnects under vibration and load. tested up to 105º C, these splitters deliver safe, consistent power in marine, RV, and industrial environments. Constructed with 12/3 conductors and a durable SJT jacket, they offer flexibility and resistance to abrasion, oil, and moisture.
L6-30P to 2x L6-20R Splitter, 20A, 12/3 AWG, 10FT + 2x2ft is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Shipping & Delivery
Shipping & Delivery
Returns & Refunds
Returns & Refunds
Support
Support
-
Connector TypeL6-20R x2
-
Temperature Rating105º C
-
Length10 Foot (8 Foot + 2 Foot Legs)
L6-30P to L6-20R Splitter Cords, 2 x L6-20R Legs, 20A, 12/3 AWG Cable, 10 ft
| * L6-30P to L6-20R X 2 power cords * Split a L6-30P plug out to 2x L6-20R branches * Custom lengths available * Rated for 20A and 250V * 12 AWG, 3 Wire SJT cable jacket * UL Listed, RoHS certified * Call 1-800-590-8610 for qty. discounts |
Specifications:
| Plug Type | L6-30P |
| Connector Type | L6-20R x2 |
| Length | 8 Foot Main Branch + 2 Foot Legs (Custom Lengths Available) |
| Amperage | 20 Amps |
| Voltage | 250V |
| Number of Conductors | 3 |
| Wire Gauge | 12 AWG |
| Jacket Type | SJT |
| Temperature Rating | 105º C |
| Color | Black |
| Testing | Tested for Voltage Hi-Potential, Continuity, and Polarity |
| Certifications | cUL, UL Listed |
Related Terms: L6-30P to L6-20R Splitter cable, NEMA L6-30P to L6-20R Splitter power cord, Locking Splitter cords
Part Number: IBX-30115
