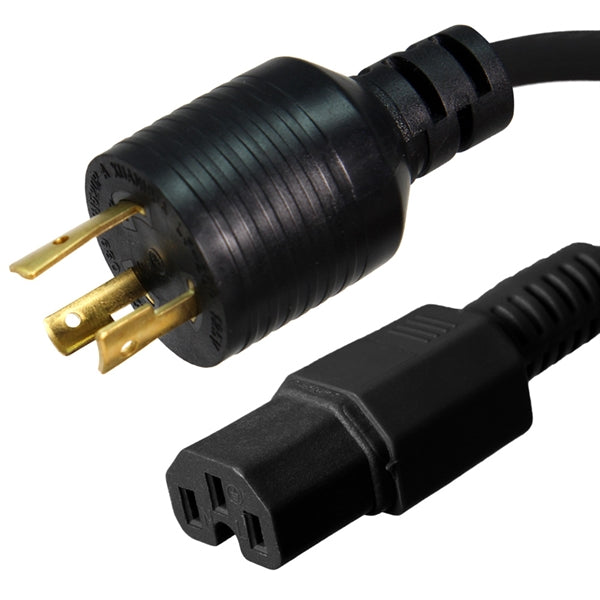

L5-20P to C15 Plug Adapter Power Cord
Our plug adapters simplify compatibility between devices that use different plug and connector configurations. This adapter converts from a L5-20P to a C15 for a secure, reliable fit. Rated 15A at 125V, and tested for up to 105º C°C, these adapters are designed to handle demanding power applications safely. Constructed with 14/3 wire and a durable SJT jacket for flexibility, abrasion resistance, and long-term performance.
L5-20P to C15 Plug Adapter Power Cord - 1 Foot is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Shipping & Delivery
Shipping & Delivery
Returns & Refunds
Returns & Refunds
Support
Support
-
Plug TypeL5-20P
-
Amperage15A
L5-20P to C15 Plug Adapter, 1 Foot, 15 Amps, 125V, 14/3 SJT Power Cord
|
* L5-20P to C15 plug adapter power cord * C15 is also known as a "notched C13" * Available in custom lengths and wire AWG * Rated for 15A and 125V * 14 AWG, 3 Wire SJT cable jacket * UL Listed, RoHS certified * Call 1-800-590-8610 for qty. discounts |
Specifications:
| Plug Type | L5-20P |
| Connector Type | C15 |
| Length | 1 Foot (Custom Lengths Available) |
| Amperage | 15 Amps |
| Voltage | 125V |
| Number of Conductors | 3 |
| Wire Gauge | 14 AWG |
| Jacket Type | SJT |
| Temperature Rating |
105º C |
| Color | Black |
| Testing | Tested for Voltage Hi-Potential, Continuity, and Polarity |
| Certifications | cUL, UL Listed (File # E360079) |
.png)

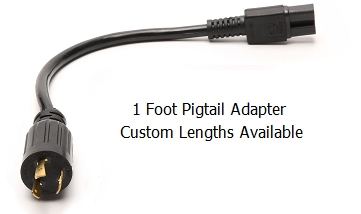

Tech Notes: 1 foot of 14/3 AWG wire w/ molded L5-20P plug and C15 connector
Applications: Adapt an IEC C14 plug to fit into a NEMA L5-20R outlet
Related Terms: C15 to L5-20P cord adapter, IEC 320 L520P to C15 power cord plug adapter
Part Number: IBX-2153 (X = Length)
Application Shots: .png)
