Plug TypeL21-30P
-
Connector TypeC19
-
Amperage20A
-
Connector TypeC19
-
Length1 Foot, 3 Foot, 6 Foot, 10 Foot, 15 Foot
-
Temperature Rating105º C

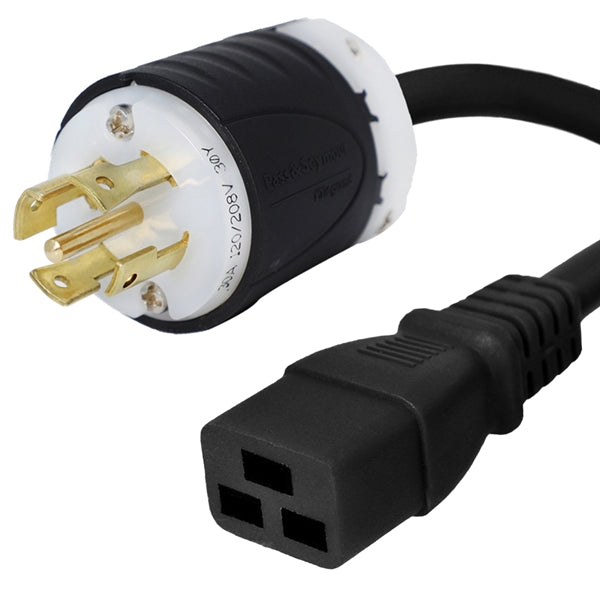

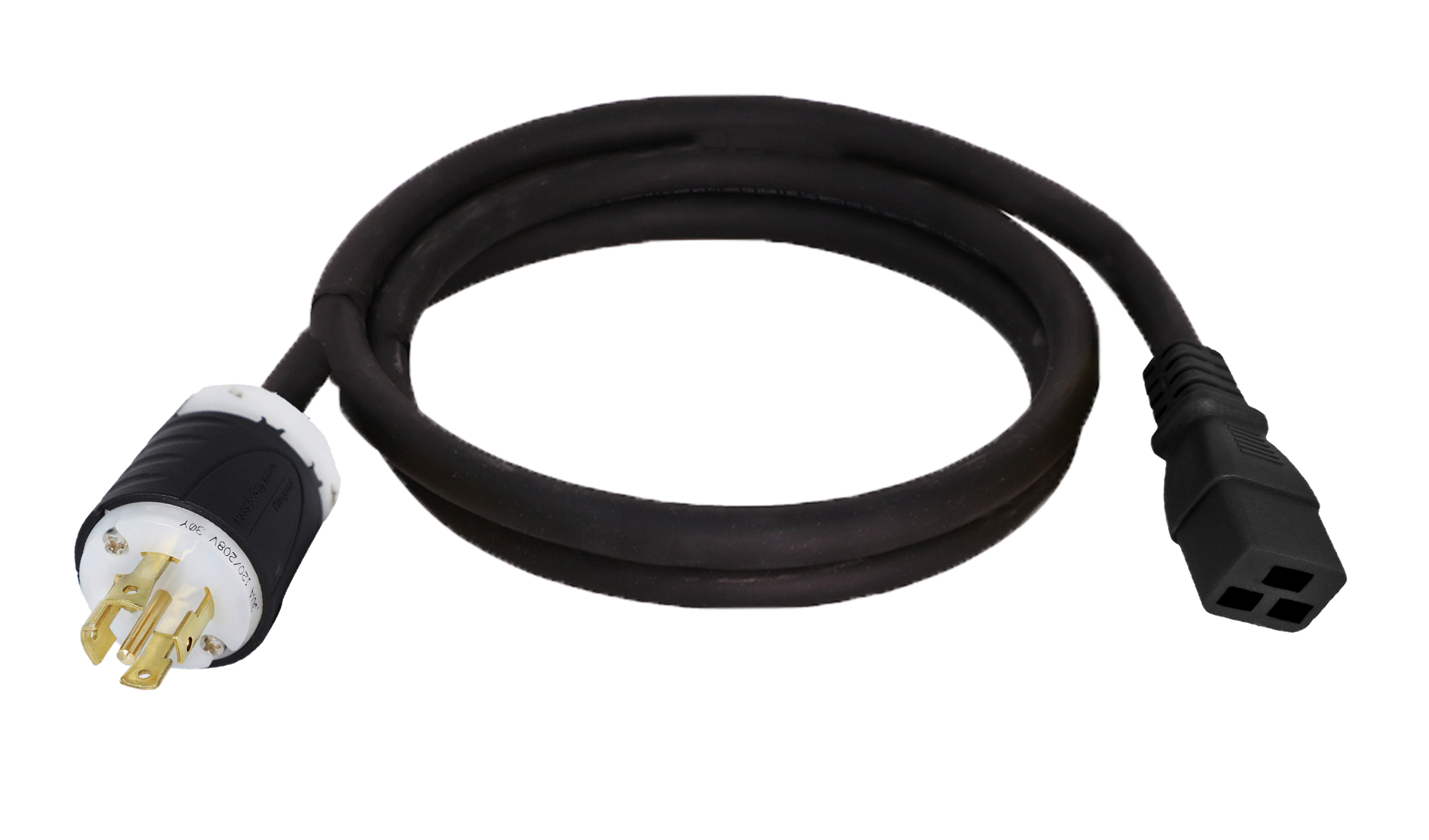

NEMA L21-30P to C19 Power Cords - 12/3 SJT Cable, 20A/208V
|
* L21-30P to C19 power cord * C20 mates with a C19 male plug * Available in custom lengths and wire AWG * Rated for 20A and 208V * 12 AWG, 3 Wire SJT cable jacket * UL Listed, RoHS certified * Call 1-800-590-8610 for qty. discounts |

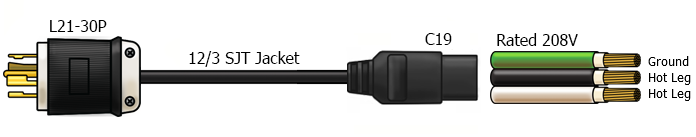

Specifications:
| Plug Type | L21-30P |
| Connector Type | C19 |
| Length | 1, 3, 6, 10, 15 Foot Lengths |
| Amperage | 20 Amps |
| Voltage | 208V |
| Number of Conductors | 3 |
| Wire Gauge | 12 AWG |
| Jacket Type | SJT |
| Temperature Rating |
105º C |
| Color | Black |
| Testing | Tested for Voltage Hi-Potential, Continuity, and Polarity |
| Certifications | cUL, UL Listed (File # E360079) |

Tech Notes: The female C19 connector is mated with a male C20 inlet, found on most computers
Applications: Plug a device with a C20 into an L21-30R outlet
**This item is custom built to order.
Related Terms: C19 to L21-30P cord adapter, L2130P to C19 power cord, L21-30P plug C19 connector
Part Number: IBX-5943-X (X = Length)

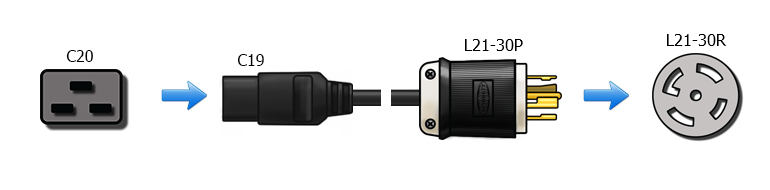

Application Shots:
