Plug TypeL21-30P
-
Connector TypeC13
-
Amperage15A
-
Connector TypeC13
-
Length1 Foot, 3 Foot, 6 Foot, 10 Foot, 15 Foot
-
Temperature Rating105º C

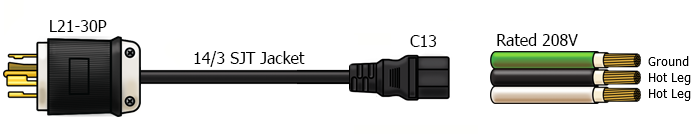

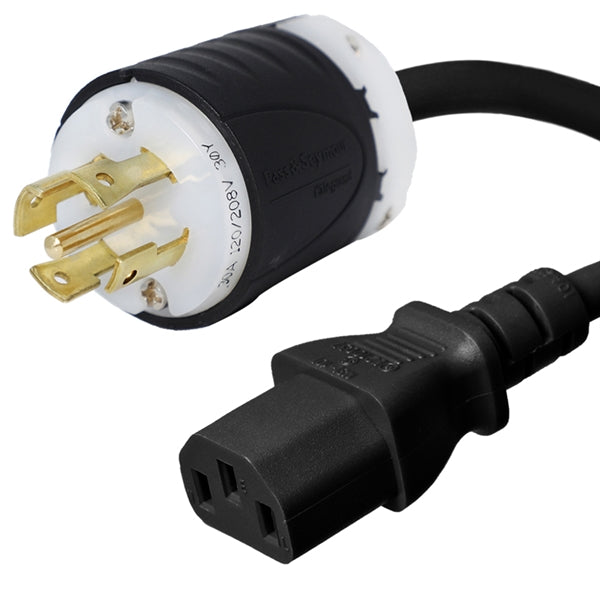

NEMA L21-30P to C13 Power Cords - 14/3 SJT Cable, 15A/208V
|
* L21-30P to C13 power cord * C13 mates with a C14 male plug * Available in custom lengths and wire AWG * Rated for 15A and 208V * 14 AWG, 3 Wire SJT cable jacket * UL Listed, RoHS certified * Call 1-800-590-8610 for qty. discounts |
Specifications:
| Plug Type | L21-30P |
| Connector Type | C13 |
| Length | 1, 3, 6, 10, 15 Foot Lengths |
| Amperage | 15 Amps |
| Voltage | 208V |
| Number of Conductors | 3 |
| Wire Gauge | 14 AWG |
| Jacket Type | SJT |
| Temperature Rating |
105º C |
| Color | Black |
| Testing | Tested for Voltage Hi-Potential, Continuity, and Polarity |
| Certifications | cUL, UL Listed (File # E360079) |
.png)
Tech Notes: The female C13 connector is mated with a male C14 inlet, found on most computers
Applications: Plug a device with a C14 into an L21-30R outlet
**This item is custom built to order.
Related Terms: C13 to L21-30P cord adapter, L2130P to C13 power cord, L21-30P plug C13 connector
Part Number: IBX-46891-X (X = Length)
