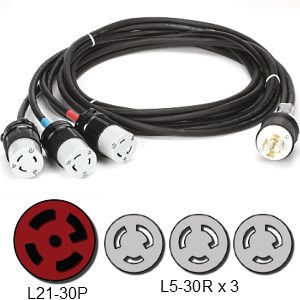

L21-30P to 3 x L5-30R 3-Phase Splitter Power Cord
Our locking splitter cords let you power multiple devices from a single source while maintaining secure, twist-lock connections. This splitter features a L21-30P input and L5-30R x3 output(s) to prevent accidental disconnects under vibration and load. tested up to 105ยบ C, these splitters deliver safe, consistent power in marine, RV, and industrial environments. Constructed with 12/3 conductors and a durable SJOOW jacket, they offer flexibility and resistance to abrasion, oil, and moisture.
L21-30P to 3 x L5-30R 3-Phase Splitter Power Cord - 2 Foot / 2 Foot / 2 Foot is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Shipping & Delivery
Shipping & Delivery
Returns & Refunds
Returns & Refunds
Support
Support
-
Connector TypeL5-30R x3
-
Temperature Rating105ยบ C
L21-30P to L5-30R Splitter Cord, 3 x L5-30R Legs, 3-Phase to Single Phase
|
* L21-30P to L5-30R X 3 power cords * Split a L21-30P plug out to 3x L5-30R branches * Custom leg lengths available * Rated for 20A and 120V * 12 AWG, 3 Wire SJT cable jacket * Three phase plug to single phase connectors * Call 1-800-590-8610 for qty. discounts |
Specifications:

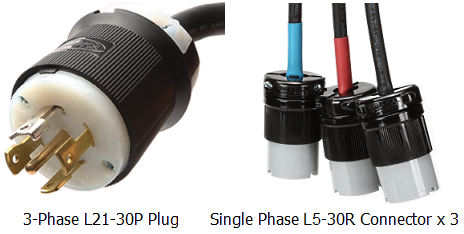

| Plug Type | L21-30P |
| Connector Type | L5-30R X 3 |
| Length | 3, 6, 10 Foot Legs Standard (Custom Leg Lengths Available) |
| Amperage | 30A plug to 30A connectors (20A max wire AWG) |
| Voltage | 120V |
| Number of Conductors | 3 |
| Wire Gauge | 12 AWG (Max Allowed) |
| Jacket Type | SJT |
| Temperature Rating |
105ยบ C |
| Color | Black |
| Testing | Tested for Voltage Hi-Potential, Continuity, and Polarity |
.png)
Tech Notes: 12 AWG wire is the maximum x3 that can be terminated into the L21-30P plug
Applications: Allows you to run three single phase devices from a 3-Phase L21-30R receptacle
* Custom made and non returnable
Related Terms: L21-30P to L5-30R Splitter cable, L21-30P to NEMA L5-30R Splitter power cord, Locking Splitter cords
Part Number: IBX-2150-XX (XX = Length)
Application Shots:
Fax Purchase Orders to 1-800-447-1381 or email sales@pduwhips.com
Call Toll-Free 1-800-590-8610 if you need technical assistance or if you need a quote
