Iron Box  |  SKU: IBX-2136-XX

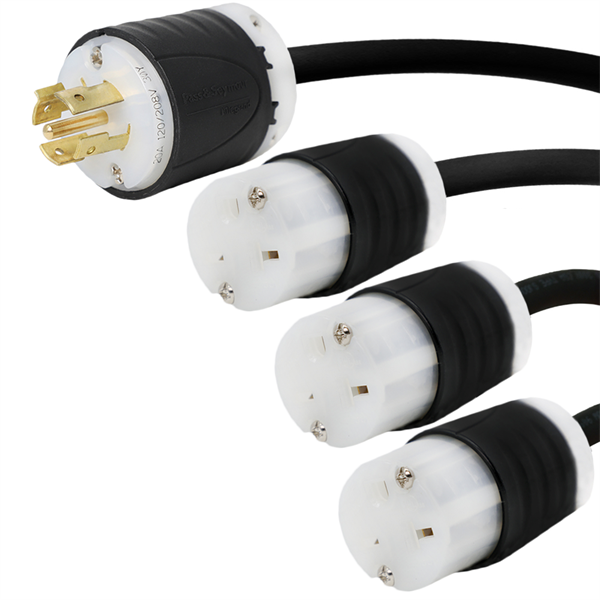

L21-20P to 3 x 6-20R Splitter Power Cords

$125.40
Shipping calculated at checkout.

Our locking splitter cords let you power multiple devices from a single source while maintaining secure, twist-lock connections. This splitter features a locking plug input and locking connector output(s) to prevent accidental disconnects under vibration and load. Rated, these splitters deliver safe, consistent power in marine, RV, and industrial environments.

Request for Tax Exemptions

Shipping & Delivery

All shipping charges are calculated by weight. Freight collect shipping is available upon request.

In-stock items ship same day when ordered before 3:00 pm EST. Drop-ship orders follow the manufacturer's shipping policy. Blind shipping is available upon request.

Ground delivery varies from 1–5 business days depending on your region. Transit times are calculated from the ship date, not the order date.

Freight delivery is required for large or heavy items. Residential deliveries and locations without a dock may incur additional charges — we'll contact you with rates if applicable.

Returns & Refunds

Non-custom items in perfect condition may be returned within 30 days of delivery. A 20% restocking fee applies to all returns.

Note: Custom power cables are built to order and are non-cancelable and non-returnable at time of purchase.

To initiate a return, complete the Return Merchandise Authorization (RMA) form. Credits are issued once the item is received and inspected, and are applied to the original purchase account.

Support

Technical Assistance / Quote Request

Call - 1-800-590-8610
Email - sales@ironbox.com

L21-20P to 6-20R Splitter Cord, 3 x 6-20R Legs, 20 Amps, 120-208V, 12/3 SJT

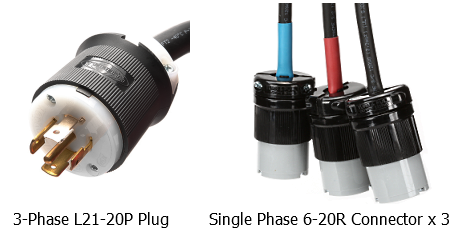

blue c14 to c13

* L21-20P to 6-20R X 3 power cords

* Split a L21-20P plug out to 3x 6-20R branches

* Custom leg lengths available

* Rated for 20A and 120/208V

* 12 AWG, 3 Wire SJT cable jacket

* Call 1-800-590-8610 for qty. discounts

Specifications:

Plug Type L21-20P
Connector Type 6-20R X 3
Length Legs are 3 Foot, 6 Foot, and 10 Foot (Custom Leg Lengths Available)
Amperage 20 Amps
Voltage 120/208V
Number of Conductors 3
Wire Gauge 12 AWG
Jacket Type SJT
Temperature Rating
 105º C
Color Black
Testing Tested for Voltage Hi-Potential, Continuity, and Polarity

L21-20P to 6-20R X 3

Tech Notes: Splits a L21-20P male plug out to three 6-20R connectors

Applications: Connect server and network equipment to a rack PDU in a rack enclosure

**This item is custom built to order.

Related Terms: L21-20P to 6-20R Splitter cable, L21-20P to NEMA 6-20R Splitter power cord, Locking Splitter cords

Part Number: IBX-2136-XX (XX = Length)

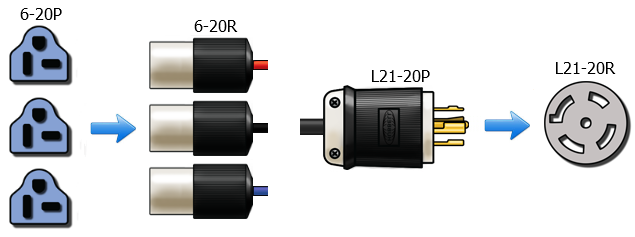

Application Shots:

6-20 X 3 to L21-20
