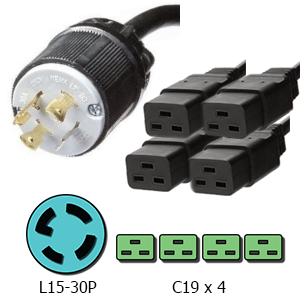

L15-30P to 4x C19 4-Way Splitter Power Cord, 20A, 250V
Our locking splitter cords let you power multiple devices from a single source while maintaining secure, twist-lock connections. This splitter features a L15-30P input and C19 x4 output(s) to prevent accidental disconnects under vibration and load. tested up to 105º C, these splitters deliver safe, consistent power in marine, RV, and industrial environments. Constructed with 12/3 conductors and a durable SJT jacket, they offer flexibility and resistance to abrasion, oil, and moisture.
L15-30P to 4x C19 4-Way Splitter Power Cord, 20A, 250V - 1 Foot + 2 Foot Legs is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Shipping & Delivery
Shipping & Delivery
Returns & Refunds
Returns & Refunds
Support
Support
-
Connector TypeC19 x4
-
Temperature Rating105º C
-
Length1 Foot + 2 Foot Legs, 5 Foot (3 Foot + 2 Foot Legs), 6 Foot + 2 Foot Legs, 10 Foot + 2 Foot Legs

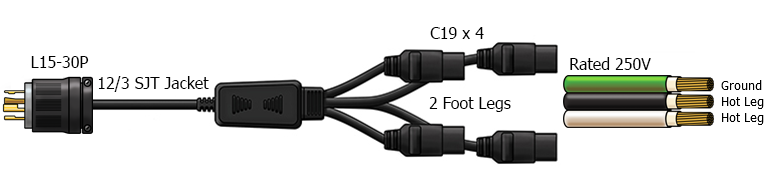

L15-30P to 4x C19 4-Way Splitter Power Cord - 12/3 SJT Cable, 20A, 250V
![]() |
* L15-30P to 4x C19 power cords * Split an L15-30P plug out to 4x C19 branches * Available in custom lengths and wire AWG * Rated for 20A and 250V * 12 AWG, 3 Wire SJT cable jacket * UL Listed, RoHS certified * Call 1-800-590-8610 for qty. discounts |
Specifications:
| Plug Type | L15-30P |
| Connector | C19 X 4 |
| Length | 3, 6, 10 Foot / 2 Foot Legs |
| Amps | 20A |
| Voltage | 250V |
| Number of Wires | 3 |
| Wire AWG | 12 AWG |
| Jacket Type | SJT |
| Temperature Rating | 105º C |
| Color | Black |
| Testing | Tested for Voltage Hi-Potential, Continuity, and Polarity |
| Certifications | cUL, UL Listed |

Applications: Breaks out one L15-30P male plug to four female C19 connectors AKA: L15-30 Splitter Cords, L15-30P C19 4-Way Splitter Cable Related Terms: C19 x 4 to L15-30P cord adapter, L1530P to 4x C19 power cord, L15-30P C19 x 4 splitter cord
Part Number: IBX-12061-X (X = Length)

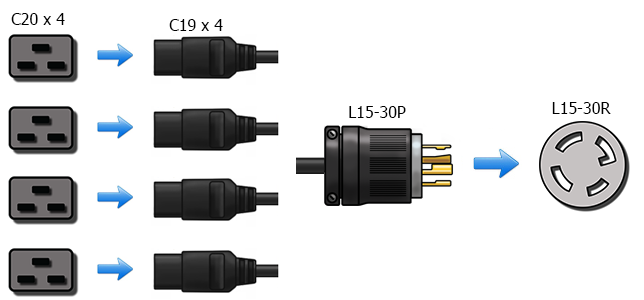

Application Shots:
