Iron Box  |  SKU: IBX-1102-XX

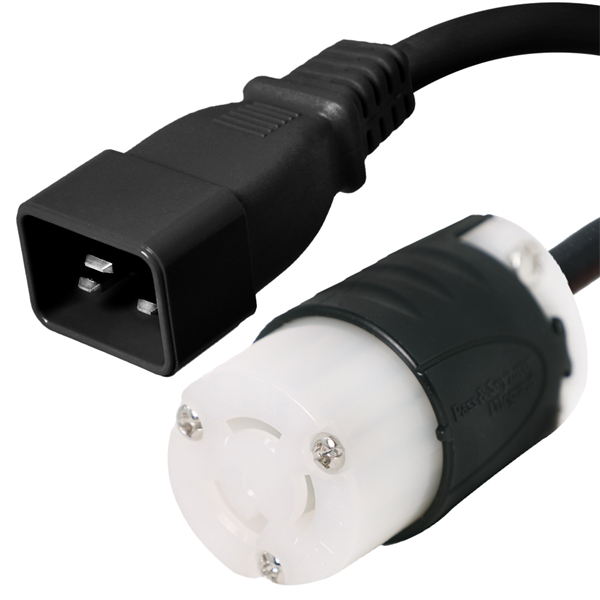

C20 to L5-15R Plug Adapter, 15A, 125V, 14/3 SJT

$27.48
Shipping calculated at checkout.

Request for Tax Exemptions

Shipping & Delivery

All shipping charges are calculated by weight. Freight collect shipping is available upon request.

In-stock items ship same day when ordered before 3:00 pm EST. Drop-ship orders follow the manufacturer's shipping policy. Blind shipping is available upon request.

Ground delivery varies from 1–5 business days depending on your region. Transit times are calculated from the ship date, not the order date.

Freight delivery is required for large or heavy items. Residential deliveries and locations without a dock may incur additional charges — we'll contact you with rates if applicable.

Returns & Refunds

Non-custom items in perfect condition may be returned within 30 days of delivery. A 20% restocking fee applies to all returns.

Note: Custom power cables are built to order and are non-cancelable and non-returnable at time of purchase.

To initiate a return, complete the Return Merchandise Authorization (RMA) form. Credits are issued once the item is received and inspected, and are applied to the original purchase account.

Support

Technical Assistance / Quote Request

Call - 1-800-590-8610
Email - sales@ironbox.com

C20 to L5-15R Plug Adapter, 1 Foot, 15 Amps, 125V, 14/3 SJT Power Cord

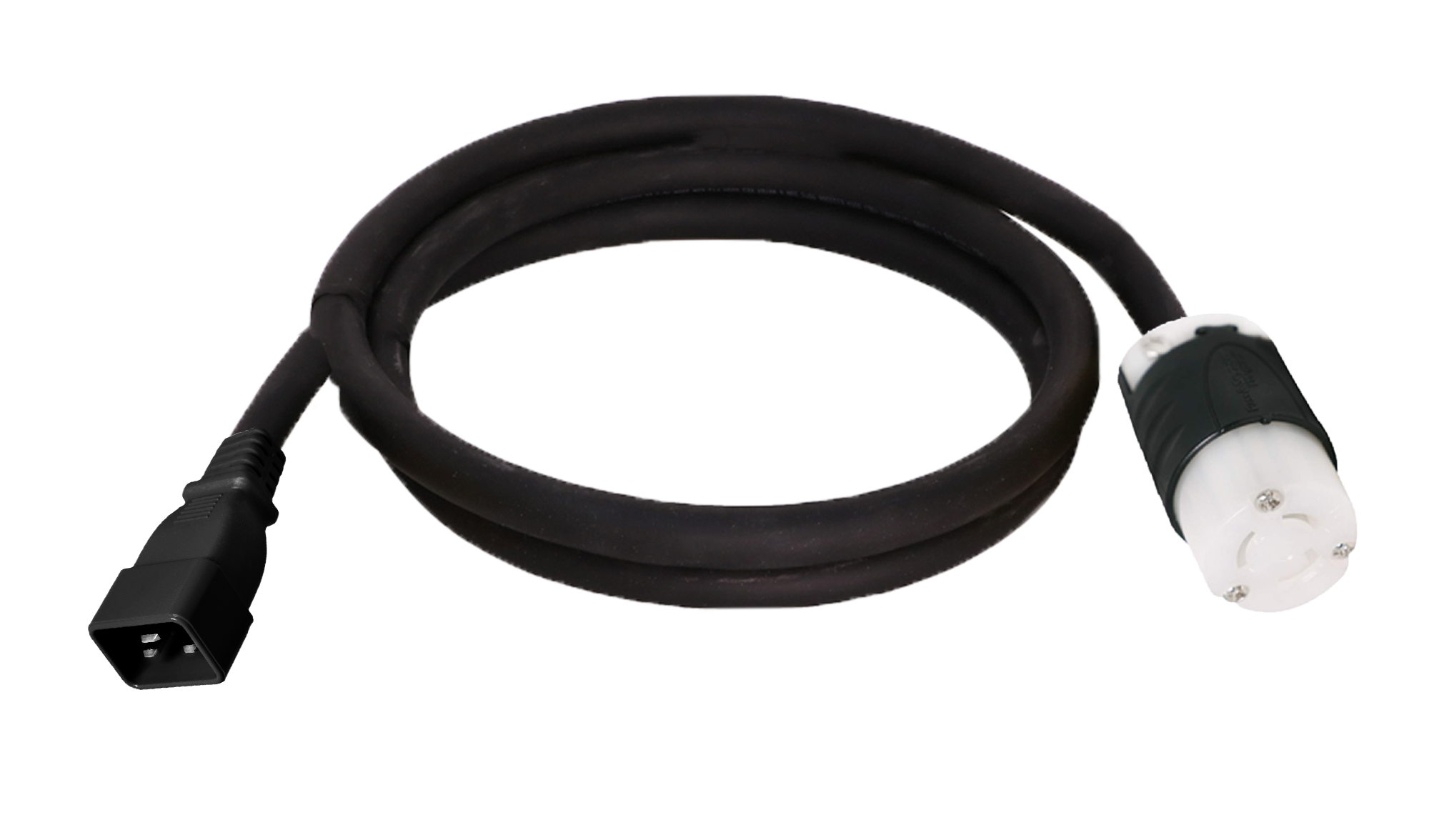

C20 Pigtail

* C20 to L5-15R plug adapter power cord

* L5-15R mates with a L5-15P male plug

* Available in custom lengths and wire AWG

* Rated for 15A and 125V

* 14 AWG, 3 Wire SJT cable jacket

* UL Listed, RoHS certified

* Call 1-800-590-8610 for qty. discounts

Specifications:

Plug Type C20
Connector Type L5-15R
Length 1 Foot (Custom Lengths Available)
Amperage 15 Amps
Voltage 125V
Number of Conductors 3
Wire Gauge 14 AWG
Jacket Type SJT
Temperature Rating
 105º C
Color Black
Testing Tested for Voltage Hi-Potential, Continuity, and Polarity
Certifications cUL, UL Listed (File # E360079)

C20 to L5-15R

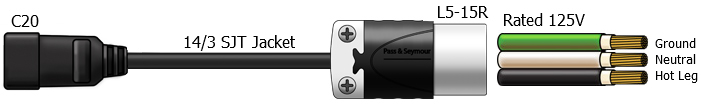

Tech Notes: 1 foot of 14/3 AWG wire w/ molded C20 plug and L5-15R connector

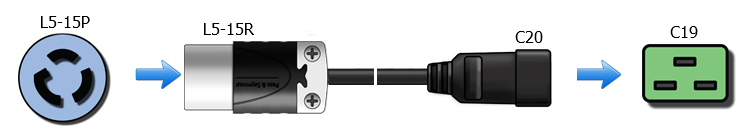

Applications: Adapt a NEMA L5-15P plug to fit into an IEC C19 outlet

**This item is custom built to order.

Related Terms: L5-15P to C20 cord adapter, C20 to L515R power cable adapter, C20 L5-15R Pigtail

iron box power cordsPart Number: IBX-1102-X (X = Length)
