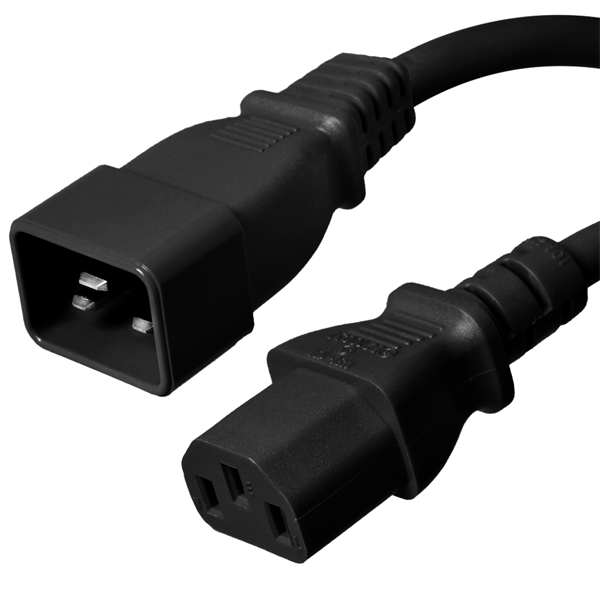

C20 to C13 Plug Adapter, 15A, 250V, 14/3 SJT
Our plug adapters simplify compatibility between devices that use different plug and connector configurations. This adapter converts from a C20 to a C13 for a secure, reliable fit. Rated 15A at 250V, and tested for up to 105º C°C, these adapters are designed to handle demanding power applications safely. Constructed with 14/3 wire and a durable SJT jacket for flexibility, abrasion resistance, and long-term performance.
C20 to C13 Plug Adapter, 15A, 250V, 14/3 SJT is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Shipping & Delivery
Shipping & Delivery
Returns & Refunds
Returns & Refunds
Support
Support
-
Plug TypeC20
-
Amperage15A
C20 to C13 Plug Adapter, 1 Foot, 15 Amps, 250V, 14/3 SJT Power Cord
|
* C20 to C13 plug adapter power cord * C13 mates with a C14 male plug * Available in custom lengths and wire AWG * Rated for 15A and 250V * 14 AWG, 3 Wire SJT cable jacket * UL Listed, RoHS certified * Call 1-800-590-8610 for qty. discounts |
Specifications:
| Plug Type | C20 |
| Connector Type | C13 |
| Length | 1 Foot (Custom Lengths Available) |
| Amperage | 15 Amps |
| Voltage | 250V |
| Number of Conductors | 3 |
| Wire Gauge | 14 AWG |
| Jacket Type | SJT |
| Temperature Rating | 105º C |
| Color | Black |
| Testing | Tested for Voltage Hi-Potential, Continuity, and Polarity |
| Certifications | cUL, UL Listed (File # E360079) |
Tech Notes: 1 foot of 14/3 AWG wire w/ molded C20 plug and C13 connector
Applications: Adapt an IEC C14 plug to fit into an IEC C19 outlet
Related Terms: C13 to C20 cord adapter, IEC320 C20 power cord plug adapter
Part Number: IBX-4924-01 (01 = Length)
Application Shots:
Fax Purchase Orders to 1-800-447-1381 or email sales@pduwhips.com Call Toll-Free 1-800-590-8610 if you need technical assistance or if you need a quote
