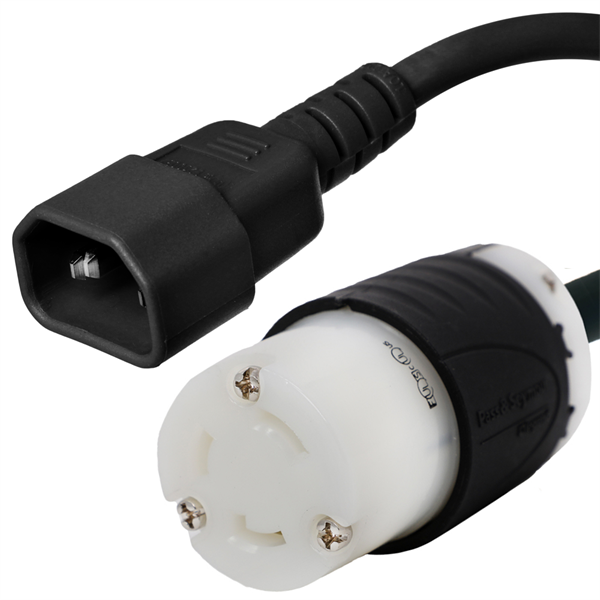

C14 to L5-30R Plug Adapter, 15A, 125V, 14/3 SJT
Our plug adapters simplify compatibility between devices that use different plug and connector configurations. This adapter converts from a C14 to a L5-30R for a secure, reliable fit. Rated 15A at 125V, and tested for up to 105º C°C, these adapters are designed to handle demanding power applications safely. Constructed with 14/3 wire and a durable SJT jacket for flexibility, abrasion resistance, and long-term performance.
C14 to L5-30R Plug Adapter, 15A, 125V, 14/3 SJT is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Shipping & Delivery
Shipping & Delivery
Returns & Refunds
Returns & Refunds
Support
Support
-
Plug TypeC14
-
Amperage15A
C14 to L5-30R Plug Adapter, 1 Foot, 15 Amps, 125V, 14/3 SJT Power Cord
|
* C14 to L5-30R plug adapter power cord * L5-30R mates with a L5-30P male plug * Available in custom lengths and wire AWG * Rated for 15A and 125V * 14 AWG, 3 Wire SJT cable jacket * UL Listed, RoHS certified * Call 1-800-590-8610 for qty. discounts |
Specifications:
| Plug Type |
C14 |
| Connector Type | L5-30R |
| Length | 1 Foot (Custom Lengths Available) |
| Amperage | 15 Amps |
| Voltage | 125V |
| Number of Conductors | 3 |
| Wire Gauge | 14 AWG |
| Jacket Type | SJT |
| Temperature Rating |
105º C |
| Color | Black |
| Testing | Tested for Voltage Hi-Potential, Continuity, and Polarity |
| Certifications | cUL, UL Listed (File # E360079) |

Tech Notes: 1 foot of 14/3 AWG wire w/ molded C14 plug and L5-30R connector

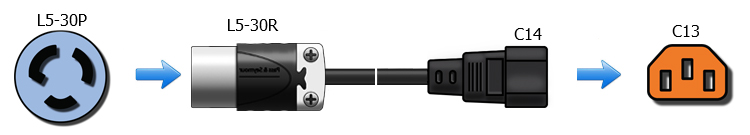

Applications: Adapt a NEMA L5-30P plug to fit into an IEC C13 outlet
**This item is custom built to order.
Related Terms: L5-30P to C14 cord adapter, C14 to L530R plug adapter, C14 L5-30R Pigtail
Part Number: IBX-3805-XX (XX denotes length)
Application Shots:
